ALL-STEEL BLOWER ASSEMBLY The all-steel blower assembly is driven by the cutter deck via a self-adjusting
belt idler system, rather than an auxiliary engine. That means a more compact
design, less maintenance, less initial cost, quieter operation and less
overall weight. Thick, 1/4" fan-blade material ensures dependability and
long life. Improved blower bearing features a stronger cast-iron housing
and easier greasing for long, reliable service.
FRONT COUNTERWEIGHT SYSTEM One 35 lb. front weight and weighted bracket (15 lb.) counterbalance
the weight of the rear-mounted hopper for stability. When you are not bagging,
the weight can easily be removed, without the use of tools.
VERTICAL BLOWER DESIGN Compact, vertical blower design adds only 6 inches to the width of
the mower. That's less space than the discharge chute normally takes! The
extremely durable, steel blower housing is angled at the bottom and front
to prevent it from damaging uneven terrain. The blower fan is constructed
of all steel—no light-duty plastic components. The blower fan is 12.5"
in diameter with fan blades (4 blades total) that are 3.75" wide.
Air Flow of the Velocity
Plus Mower Deck
Heavy-duty hydraulic drive system includes dual 12cc Hydro-Gear hydraulic
pumps and large capacity Parker wheel motors for reliable, zero turn maneuverability.
Up to 12 MPH forward and 5 MPH reverse speeds keep productivity at a maximum.
Ogura GT3.5 PTO clutch brake has 250 ft. lbs. of torque for easy blade
engagements and solid holding power in heavy cutting conditions. Adjustable
air gap ensures long component life.
Compact mower size enables you to take the Tiger Cat II into tight places.
The Tiger Cat II occupies less space on your trailer without sacrificing
performance.
Choose a 48", 52" or 61" Velocity Plus™ cutter deck. Match that with a
Kawasaki FX series, Kawasaki FT, Kohler EFI or Vanguard series engines
Tri-Plate cutter deck top is incredibly strong. .485" deck top thickness
from three separate layers of steel (7ga., 10ga, and 11ga.)
Heavy-duty, fully-welded tubular steel frame provides a solid foundation
for years of reliable service; replaceable front caster wheel weldment.
Torsion spring suspension seat adjusts to operator’s weight to provide
superior comfort. Seat features full padding, forward/rearward adjustment,
high back, adjustable armrests and adjustable back angle.
4-point rubber iso-mount system under the seat absorbs front-to-back and
side-to-side energy to soften the bumps and provide an incredibly comfortable
ride.
Dual fuel tanks (9.5 gallons total) keep you in the field cutting grass.
Fuel tanks feature extra large, angled filler necks for easy filling. Molded-in
cup holder allows for added operator convenience and comfort. Built-in
fuel gauge.
Aluminized engine exhaust reduces back pressure, increases performance,
and lasts longer than conventional steel construction.

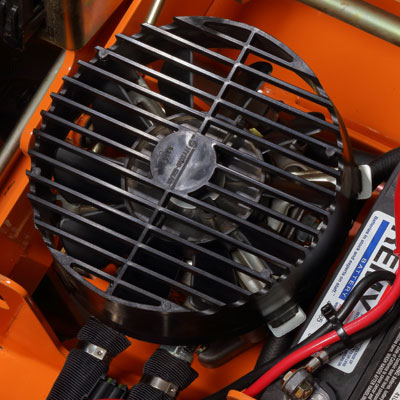

12cc hydraulic pumps equipped with cooling fans provide smooth and reliable
power. Built in pressure relief valves reduce internal pressure spikes
and add to hydraulic component life.
Standard equipment auxiliary canister air filter system on most Tiger Cat
II's. This provides increased service intervals and longer engine life.
The foot plate area is extra-large for improved operator comfort and easier
mounting and dismounting of the mower. Flip-up foot platform features an
auto-latch
The Scag "Simply the Best" commercial warranty stands behind you and your
mower for years of profitable service.
Spring-loaded idler arms effortlessly keep belts in constant adjustment
for maximum life and minimum maintenance.
"Split-Steel" pulleys are used on load-carrying areas like the cutter deck
spindles and pump drive systems. Split steel pulleys are stronger than
cast-iron or stamped pulley designs. Our pulleys are strong for long life
and lightweight for reduced inertia and decreased wear on the cutter deck
drive system.
No plastic pulleys - Some [other brands] actually use plastic pulleys on
their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is
for toys.
High-quality bearings and bearing debris guard on idler pulleys ensure
long, reliable service.
Tapered roller bearings are utilized in the front caster wheels and in
the caster pivots for durability and reduced maintenance. These bearings
can handle a 50% larger load than standard ball bearings. They are well
suited to handle the daily pounding the front caster wheels receive.
Standard-style steering controls are ergonomically-shaped and padded for
easy control and maximum operator comfort.
Multi-point steering dampers are designed and located for smooth operation
and minimal fatigue. Mount the dampers in one of three mounting locations
for a customized feel.
Easily adjust cutting heights from the seat with the convenient adjustable
foot pedal and top access cutting height selector. Wide range of adjustment
from 1" to 5" in 1/4" increments.
Four corner deck adjustment allows for easy in-the-field deck leveling
adjustment.
High-strength cutter blades stay sharp longer for reduced maintenance.
Heavy-duty blade drive spindles provide reliable, top-notch performance
day in and day out.
Custom-Cut Baffle allows you to customize the cutter deck to your individual
cutting conditions.

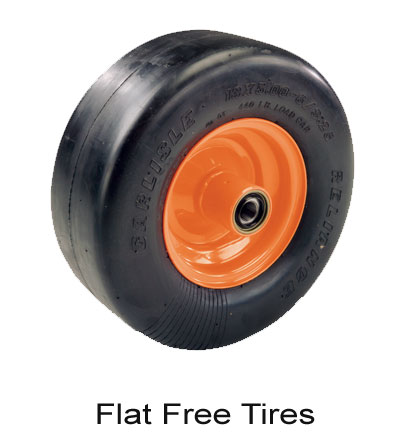

Large drive tires ensure solid traction and easy curb climbing. Large pneumatic
front caster tires for a smoother ride.

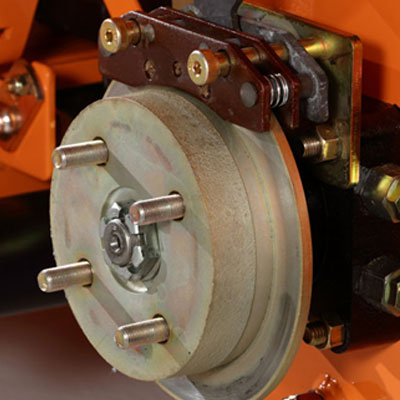

Interlocked parking brake system prevents movement while trailering or
when parked on inclines. The mower cannot be driven when the brake is applied.
This prevents premature brake wear.

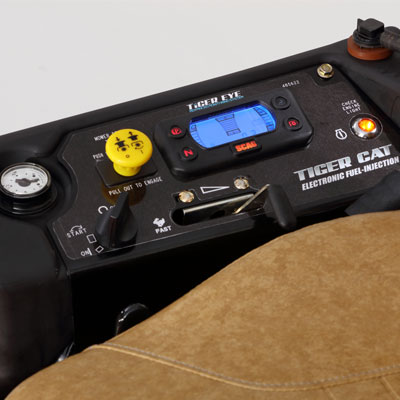

Operator friendly instrument panel located just to the left of the operator.
It includes Tiger Eye: Advanced On-Board Monitoring System, ignition switch,
mower engagement switch, and separate choke and throttle controls.
12V accessory plug allows charging of the phone and other small accessories.
User-friendly design allows quick access to the engine and filters, for
easy maintenance.
Engine oil drain makes maintenance clean and easy.
Replaceable trim side wear pad on the cutter deck helps protect landscape
and the edge of the cutter deck from wear and tear.
High quality electrical components such as switches, wiring, sealed fuses
and harness looms are used throughout the Scag mower line for dependable
service.
Foldable Rollover Protection System (ROPS) is standard equipment and easily
fits into enclosed trailers. ROPS provides additional operator safety.
Retractable seatbelts for added convenience.
There are many productive accessories for the Tiger Cat like the
Tiger Striping kit, the 16 bushel spindle driven grass catcher, the 12
bushel dump-from-the-seat catcher system, and many more!
SCAG TIGER CAT II MOWER
OPTIONS/ENGINE AND CUTTER DECK COMBINATIONS*
