Match a 52" or 61" cutter deck with a Kawasaki FX or FT Series, Kohler CV Series or Briggs Vanguard Series V-Twin engine with canister air filter is the exclusive engine of the Scag Patriot.
10 MPH (SPZ61) or 8.5 MPH (SPZ52) forward and 5 MPH in reverse ground speeds for more productivity.

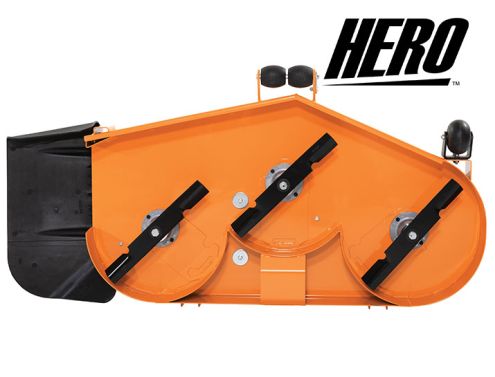

52" or 61" fully fabricated cutter decks are tough and deliver the beautiful cut that Scag mowers are known for.
Dual Hydro-Gear ZT-3400 (61”) or ZT-3100 (52”) hydro transaxles with all metal gears and spin-on oil filters.The ZT drive systems deliver smooth and solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
6.5 gallon fuel capacity (single tank) lets you cut longer between fill-ups. Built-in fuel gauge.
Heavy-duty, aluminum, sealed ball bearing blade drive spindles provide reliable performance season after season.
Tubular steel main frame delivers unmatched strength and longevity.
Open, easily accessible engine compartment makes maintenance easy and provides ample cooling for the V-twin engine. Engine oil drain and air filter are within easy reach.
Extra-large drive tires (22” on SPZ52; 24” on SPZ61) and front caster tires ( 13 x 6.5 - 6) ensure better traction, less turf tearing and easy curb climbing.
Full-featured instrument panel features ignition switch, throttle control. choke control, PTO deck engagement switch and a digital hour meter with built-in maintenance reminders. Hour meter only activates when the engine is running to accurately record engine time.
The Ogura PTO Clutch Brake delivers reliable blade start and stops. Adjustable air gap ensures long component life and reduced maintenance costs. Other clutches do not have adjustable air-gaps and once they are out of adjustment, they must be replaced.
Custom, bolstered suspension seat adds another level of comfort to the 52" & 61" Scag Patriot. Fold-up arm rests are standard.
Foot operated brake with park lock feature allows the operator to apply the brake without taking their hands off the steering levers. A simple lock lever can be engaged with the foot pedal depressed to keep the brake on.
Ausco disc brakes feature a rotor and caliper style design for maximum holding power.
Large diameter, padded steering levers make driving the Patriot a breeze. Total control, at your fingertips.
High-strength steel cutter blades stay sharp longer for a better looking cut and reduced maintenance.
Easily adjust cutting heights from the seat with the convenient, easy to lift, foot pedal. Wide range of adjustment from 1-1/2" to 5 " in 1/4" increments.
Dual steering dampers for smooth, precise responsiveness.
Cup holder keeps beverage within easy reach and is standard equipment.
Deck leveling adjustment brackets allow for easy deck leveling adjustment.
Highly flexible discharge chute will not dent and is easy on the landscape.
No plastic pulleys - Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys.
High-quality bearings and bearing debris guard on idler pulleys ensure long, reliable service.
Spring loaded idler arms effortlessly keep belts in constant adjustment for maximum life and minimum maintenance.
Excellent stability due to an exceptionally low center-of-gravity and extra wide stance.
The Scag "Simply the Best" warranty stands behind you and your mower for years of service. 2-year Commercial or 3-years or 500 hours (whichever comes first) Non-Commercial warranty.
High quality electrical components such as switches, wiring and harness looms are used throughout the Scag mower line for trouble-free service.
There are many, time saving, accessories for the Patriot like the Tiger Striper lawn striping kit, 2-bag fabric grass catchers, halogen light kits and more.
Actual ground speed may vary. Specifications subject to change without notice or obligation.

SCAG PATRIOT Z MOWER OPTIONS/ENGINE AND CUTTER DECK COMBINATIONS

SPZ52H-22FX: 52" Cutter Deck, 22hp Kawasaki FX691 air-cooled engine

SPZ52H-25ZT: 52" Cutter Deck, 25hp Kohler Confident series engine

SPZ52H-24FT: 52" Cutter Deck, 24hp Kawasaki FT Series air-cooled engine

SPZ61H-23FX: 61" Cutter Deck, 23hp Kawasaki FX730 air-cooled engine

SPZ61H-25CV: 61" Cutter Deck, 25hp Kohler Command Pro air-cooled engine

SPZ61H-26BV: 61" Cutter Deck, 26hp Vanguard Big Block series air-cooled engine

SCAG PATRIOT Z MOWER DIMENSIONS

Scag Patriot Mower Dimensions	52" Patriot	61" Patriot
Length:	73"	79"
Width (chute down):	64.5"	73.5"
Width (chute in transport):	53"	62"
Weight:	907 - 911lbs.	952 - 956lbs.

Optional Accessories:

12" chrome wheel covers will add 2MPH to your Scag mower....ok, maybe not. But they look awesome!	Spring-loaded lawn striper. Create beautiful lawn patterns to set your work apart.
Slide the Blade Buddy over the end of your cutter blades during blade changes to keep the blade from turning.	Use your Scag mower to tow attachments or a cart to haul debris. 250 lb. limit.

Scag Patriot Z

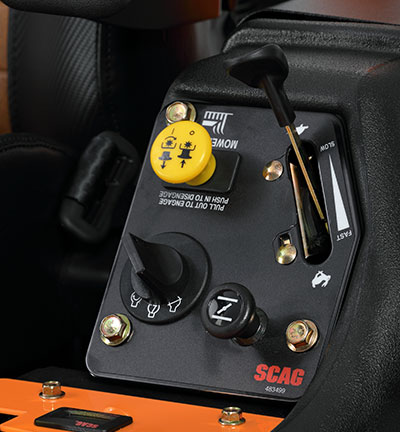

Instrument panel features: Ignition switch, PTO switch, throttle control, choke control, hour meter.

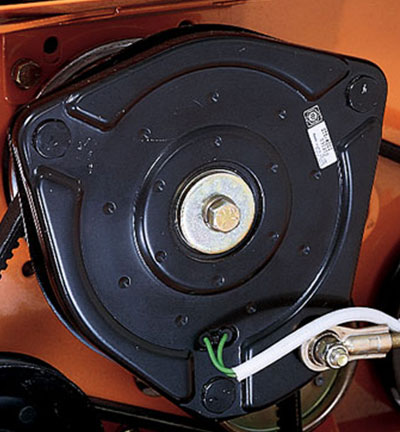

Ogura GT 2 PTO clutch brake offers excellent starting and stopping power for the cutter deck. Adjustable air-gap for long life.

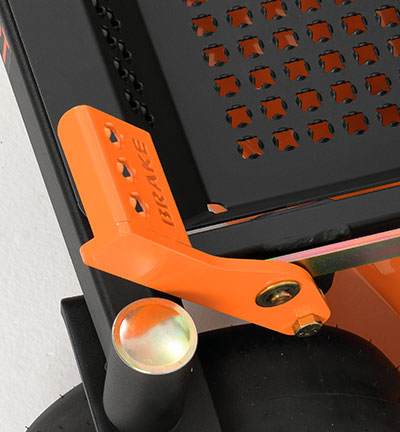

Foot Operated Brake with
Park Lock

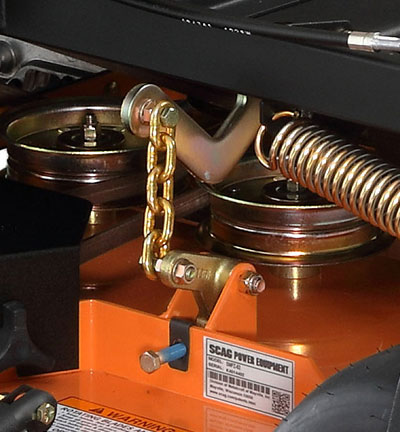

In the event the deck becomes uneven, it's an easy fix with four-point deck leveling.

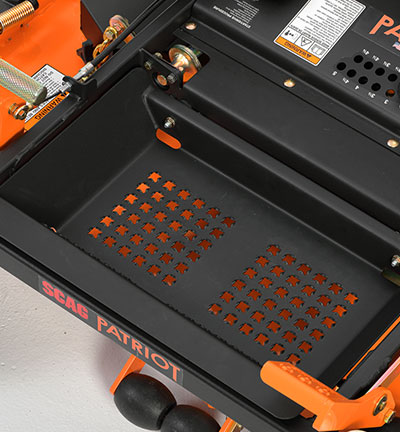

All Steel, Extra-Wide, Rubber Iso-Mounted Foot Plate
