• Up to 8 MPH forward and 5 MPH reverse speeds deliver maximum productivity. Fast ground speeds will make short work of your residential acreage or commercial property.

• Fully welded and fabricated, unitized steel main frame design is stronger than "bolt together" or stamped frame designs. This frame is built to last.
• Choose from a 36", 48", 52" or 61" cutter deck. Cutter decks are constructed with a 10-gauge top with an 11-gauge reinforcement plate around the spindle mounting area for extra support. The cutter deck skirt is 7-gauge for additional strength.
• Power your Freedom with a 17hp or 20hp Kawasaki V-twin, or a  26hp or 28hp Briggs & Stratton Professional Series V-twin engine.
• Dual Hydro-Gear ZT3100 transaxles (36", 48", and 52" models) or Dual Hydro-Gear ZT-3400 transaxles (61" model) put the power to the ground. These powerful units deliver smooth maneuverability and feature spin-on oil filters (40 micron) for optimal fluid filtration and long component life.
• Ogura PTO clutch brake has lots of torque (87 ft/lbs) for smooth blade engagements and solid holding power in heavy cutting conditions. Adjustable airgap delivers long component life. (61" Freedom Z uses GT 3.5 clutch which is 250 ft/lbs)
• Maintenance free mower design has no grease points, saving you maintenance time and giving you the freedom to do other things.
• ROPS (Roll Over Protection System) is standard equipment along with retractable seatbelts. ROPS provides additional operator safety.
• Compact mower size enables you to take the Freedom Z into tight places. The Freedom Z also occupies less space in your garage, leaving more room for other tools and toys.
• Up to 7 gallon fuel capacity gives you the freedom to cut vast amounts of grass without having to stop and refuel. The fuel tank features an extra large filler neck for easy refueling. (7gal capacity on 48", 52" and 61" models; 6.5 gal capacity on 36" models)
• Large drive and caster tires ensure solid traction and a smooth ride.
-Front caster tires: 11x4.5-5.
-Drive tires: 20x10-8 (48", 52" and 61" models); 18x7-8 (36" models)
• Extra large foot plate for improved operator comfort and easier mounting and dismounting of the mower. The pierced, extruded metal tread ensures solid footing. The entire foot plate is rubber iso-mounted for additional operator comfort.
• Easily adjust cutting heights while seated via. Wide range of adjustment from 1" to 4-1/2" in 1/4" increments.
• Foot pedal deck lift features a large knurled peg for "no slip" deck lifting. Spring-assisted design makes lifting the cutter deck easy and smooth.
• The Scag "Simply the Best" warranty stands behind you and your mower for years of worry-free service. Unlike other mowers in its price range, the Freedom Z carries a commercial warranty as well as an estate owner / home owner warranty.
• Spring-loaded, self-adjusting idler arms effortlessly keep all belts in constant adjustment for maximum life and no maintenance.
• All steel pulleys are stronger than plastic pulley designs. This is a Scag....you will not find plastic pulleys on the Freedom Z. Steel dust and debris covers are fitted over idler pulley bearings and spindles to keep foreign material out, extending bearing life.

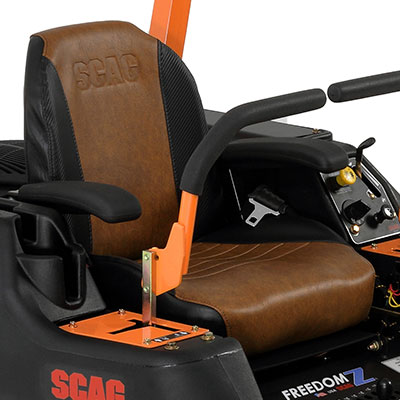

• Comfortable, easy-to-adjust operator's seat features thick cushions for operator comfort. The bottom cushion is extra thick. Retractable seat belts are standard equipment.
• Padded steering control levers with ultra-smooth dampers for smooth, precise responsiveness. Levers are adjustable.
• Gas-charged steering dampers are designed and positioned for smooth steering lever operation and minimal control effort.
• 4-corner cutter deck adjustment mechanisms allow for easy deck leveling and pitch adjustment to deliver a smooth, even cut.
• Heavy-duty, no maintenance blade drive spindles provide reliable performance day in and day out; aluminum housings and sealed ball bearings.
• Interlocked parking brake system prevents movement when parked on inclines. The mower cannot be driven when the brake is applied. This prevents premature brake wear.
• Operator friendly instrument panel is conveniently located just to the left of the operator. It includes an ignition switch, mower engagement switch, and separate choke and throttle controls.
• User-friendly mower design allows quick access to the engine and filters, for easy maintenance.
• Cup holder and storage bin are molded into the fuel tank to provide added operator convenience and comfort.
• Hydraulic oil reservoir and maintenance-free battery are enclosed within the left side tank molding to prevent external damage and to provide a sleek, clean appearance.
• Engine oil drain makes oil changes easy.
• High-quality electrical components such as switches and tightly woven, custom wiring harness looms are used throughout the Scag mower line for dependability and long life.
• Super-tough rear engine guard protects the engine compartment from potential impact damage when backing up
• Digital "SmartSense" hour meter features pre-programmed maintenance reminders to help ensure that routine service is completed. Hour meter only activates when engine is running and is located within easy sight of the operator while in the operating position.
• Productive, time saving accessories like a grass collection system and high-powered halogen lights are available for the Freedom Z.

SCAG FREEDOM Z MOWER DIMENSIONS

Adjustable, thick  cushion seat	Easy-access cutting heights	Sealed bearings in caster pivots	Cutter deck leveling system
Easy-to-use engine oil drain	Rubber iso-mounted foot plate	Self-adjusting belt systems	Cup holder and storage tray
