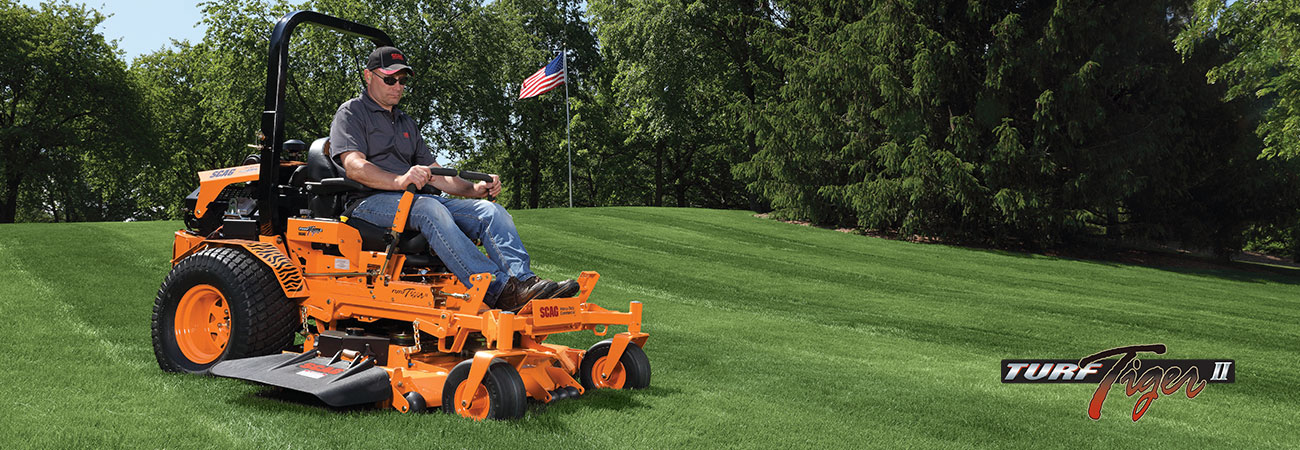

RECHARGED AND STILL LEADING THE WAY. The Turf Tiger II stands heads and tails above the crowd in power,
durability and performance. This industry benchmark has been re-engineered
to be as easy on the operator as it is efficient on tough jobs in the field.
No matter how challenging the terrain and cutting conditions, the Turf
Tiger II makes mowing a snap. From the heavy-duty, Tri-Plate Velocity
Plus™ cutter decks to its extra strength double-tube steel frame
to the dual 16cc hydraulic pumps and high-torque wheel motors, this
cat is ready for action. The Turf Tiger II features the exclusive Command-Comfort
Operator Station with adjustable 4-point iso-mounted suspension seat and
Quick-Fit adjustable steering control levers to make your time spent in
the driver’s seat more comfortable and more productive. With speeds
up to 12 mph, huge-horsepower, fuel efficient engine options like the fuel
injected Kawasaki or Kohler EFI, massive 37hp Big Block EFI models, or
Kubota Diesel models, there's a Tiger II that will increase your productivity
and send your competition running for cover! A larger capacity fuel tank
and a heavy-duty hydraulic oil cooler, the Turf Tiger II is geared up to
take the “hard” out of hard work.
PRODUCT HIGHLIGHTS
52", 61" or 72" Velocity Plus cutter deck
Engine options ranging from 26hp to 40hp
16cc Heavy-duty hydraulic drive pumps
Up to 12 MPH ground speed for more productivity
Command Comfort Operating Station
Aluminized exhaust system
Foot pedal cutter deck lift system
12 gallon fuel tank
Up to 350 ft. lb. PTO Clutch Brake
Double-tube steel main frame
Heavy-duty blade drive spindles
Operator friendly instrument panel
Powered Triple or Dumping
Baggers
ALL-STEEL BLOWER ASSEMBLY The all-steel blower assembly is driven by the cutter deck via a self-adjusting
belt idler system, rather than an auxiliary engine. That means a more compact
design, less maintenance, less initial cost, quieter operation and less
overall weight. Thick, 1/4" fan-blade material ensures dependability and
long life. Improved blower bearing features a stronger cast-iron housing
and easier greasing for long, reliable service.
FRONT COUNTERWEIGHT SYSTEM One 35 lb. front weight and weighted bracket (15 lb.) counterbalance
the weight of the rear-mounted hopper for stability. When you are not bagging,
the weight can easily be removed, without the use of tools.
VERTICAL BLOWER DESIGN Compact, vertical blower design adds only 6 inches to the width of
the mower. That's less space than the discharge chute normally takes! The
extremely durable, steel blower housing is angled at the bottom and front
to prevent it from damaging uneven terrain. The blower fan is constructed
of all steel—no light-duty plastic components. The blower fan is 12.5"
in diameter with fan blades (4 blades total) that are 3.75" wide.
Air Flow of the Velocity
Plus Mower Deck
• Up to 12 MPH forward speeds and 5 MPH reverse speeds keep productivity
at a maximum. (10 MPH forward speed on Diesel models)
• Heavy-duty hydraulic drive system includes dual 16cc Hydro-Gear pumps
and Parker wheel motors for reliable, zero turn maneuverability. Hydro-Gear
16cc hydraulic pumps provide smooth, positive and reliable power to the
drive wheels. Extra large input bearing, input shaft and internal components
add to reliability and performance. Built-in pressure relief valves reduce
internal pressure spikes and add to pump life.
• Auxiliary hydraulic oil coolers keep oil temperatures within a safe
operating level and adds to hydraulic system component life.
• Driveshaft driven cutter deck eliminates belt slip and provides increased
reliability and longevity compared to a belt drive system.
• Heavy-duty blade drive spindles provide reliable performance season
after season. The Scag spindle easily handles the high horsepower and torque
requirements of this powerful mower. Three year limited warranty.
• Choose a 52", 61" or 72" Velocity Plus™ cutter deck. Match that with
a Kawasaki DFI , Kohler EFI, Briggs Vanguard EFI engine. (61" or 71" Kubota
Diesel models)
• Tri-Plate cutter deck top is incredibly strong. .485" deck top thickness
from three separate layers of steel (7ga., 10ga, and 11ga.)
• Fuel injected engine options: The Kawasaki DFI (digital fuel injection),
Kohler EFI (electronic fuel injection) or Briggs Vanguard EFI are all incredibly
powerful and efficient powerhouses. These engines will start easier and
are more fuel efficient than carbureted models, reducing overall operating
cost.
• Single fuel tank, 12 gallon capacity keeps you in the field cutting
grass. Fuel tank is positioned low, in the center of the machine, enhancing
the mower's low center-of-gravity and giving it excellent hillside stability.
Fill up in the morning and cut all day long.
• Double tube steel main frame construction delivers superior strength
and ensures years of trouble free service. This design is much stronger
than "bolt together" frame designs. The main frame was designed for an
ultra-low center-of-gravity to increase hillside stability.
• The Ogura GT3.5 PTO Clutch Brake delivers 250 ft. lbs. of starting
and stopping torque. A GT5 model with 350 ft. lbs. of torque is used with
the Briggs Vanguard engines. Adjustable air gap ensures long component
life.
• Standard equipment auxiliary canister air filter system on all Turf
Tiger II's. This provides increased service intervals and longer engine
life. Kohler engines feature removable access panels for easy cleaning
of the cooling fins.
• Engine radiator is mounted in front of the engine, as the engine
manufacturer intended. Having the radiator positioned behind the seat offers
extra protection against impacts and foreign material. Hydraulic oil cooler
is also mounted in front of the radiator for maximum airflow and heat dissipation.
• Engine hood on liquid cooled models help protect engine from debris
damage.
• Easily adjust cutting heights from the seat with the convenient top-access
cutting height adjustment, easy to lift, 3-position adjustable foot pedal.
Wide range of adjustment from 1" to 6" in 1/4" increments.
• Custom-Cut Baffle allows you to customize the cutter deck to your
individual cutting conditions.
• Deck leveling adjustment bracket allows for easy in-the-field deck
leveling adjustment.
• Command-Comfort Operator's Station provides unmatched fatigue-fighting
comfort. Quick-Fit control levers, 4-point iso-mounted suspension seat,
3-position deck lift foot pedal and spacious foot platform combine to provide
unprecedented levels of adjustability, ergonomics and comfort.
• Quick-Fit steering control levers with dual steering dampers for
smooth, precise responsiveness. Steering levers are adjustable (without
tools) to fit a wide range of operator sizes, increasing operator comfort.
• Convenient cup holder keeps beverage securely in place and within
easy reach.
• Extra large 26 x 12 x 12 inch drive tires and 13 x 6.5 - 6 caster
wheels ensure better traction, less turf tearing and easy curb climbing.
52" models feature 26 x 9.5 x 12 drive tires.
• Flat-Free front caster tires virtually eliminate downtime and expense
caused by flat front tires.
• Tapered roller bearings are utilized in the front caster wheels and
in the caster pivots for durability and reduced maintenance.
• "Split-Steel" pulleys are used on load carrying areas like the cutter
deck spindles and pump drive systems. Split steel pulleys are stronger
than cast iron or stamped pulley designs. Our pulleys are strong for long
life and lightweight for reduced inertia and decreased wear on the cutter
deck drive system.
• No plastic pulleys - Some [other brands] actually use plastic pulleys
on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic
is for toys.
• High-quality bearings and bearing debris guard on idler pulleys ensure
long, reliable service.
• Operator friendly instrument panel includes the Tiger Eye Advanced
Monitoring System, ignition switch, mower engagement switch, water temperature
gauge (liquid-cooled engines only), separate choke and throttle controls.
• 12V accessory plug allows charging of the phone and other small accessories.
• User-friendly mower design allows quick, clean access to the engine
and filters, for easy maintenance. Rear access panel exposes self adjusting
PTO, and hydraulic pump drive belts.
• Spring loaded idler arms effortlessly keep belts in constant adjustment
for maximum life and minimum maintenance.
• Excellent hillside stability due to an exceptionally low center-of-gravity
and extra wide stance.
• The Scag "Simply the Best" commercial warranty stands behind you
and your mower for years of profitable service.
• High-strength cutter blades stay sharp longer for reduced maintenance.
• High quality electrical components such as switches, wiring and harness
looms are used throughout the Scag mower line for trouble-free service.
• Foldable Rollover Protection System (ROPS) is standard equipment
and easily fits into enclosed trailers. ROPS provides additional operator
safety. Retractable seatbelts for added convenience.
• There are many, time saving, money making accessories for the Turf
Tiger II like the Tiger Striper lawn striping kit, spindle driven grass
catchers, halogen light kits and more.
• Actual ground speed may vary. Specifications subject to change without
notice or obligation.
There are many, time saving, money making accessories for the Turf
Tiger like the Tiger Striper lawn striping kit, spindle driven grass catchers, halogen light
kits and more.
