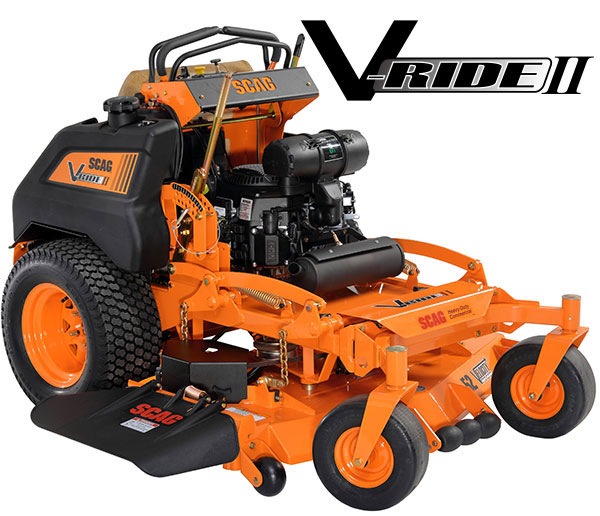

Scag V-Ride II Stander Mower


PRODUCT HIGHLIGHTS

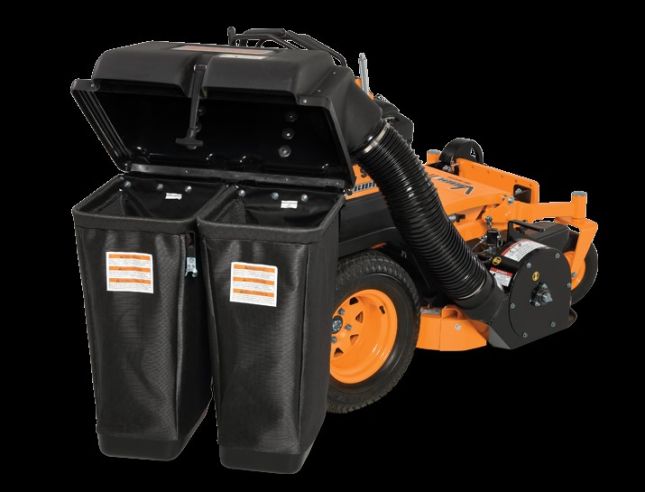

Powered Twin Bagger for the Scag V-Ride II


ALL-STEEL BLOWER ASSEMBLY
The all-steel blower assembly is driven by the cutter deck via a self-adjusting belt idler system, rather than an auxiliary engine. That means a more compact design, less maintenance, less initial cost, quieter operation and less overall weight. Thick, 1/4" fan-blade material ensures dependability and long life. Improved blower bearing features a stronger cast-iron housing and easier greasing for long, reliable service.
FRONT COUNTERWEIGHT SYSTEM
One 35 lb. front weight and weighted bracket (15 lb.) counterbalance the weight of the rear-mounted hopper for stability. When you are not bagging, the weight can easily be removed, without the use of tools.
VERTICAL BLOWER DESIGN
Compact, vertical blower design adds only 6 inches to the width of the mower. That's less space than the discharge chute normally takes! The extremely durable, steel blower housing is angled at the bottom and front to prevent it from damaging uneven terrain. The blower fan is constructed of all steel—no light-duty plastic components. The blower fan is 12.5" in diameter with fan blades (4 blades total) that are 3.75" wide.




  • Available in several model configurations to fit a wide range of professional lawn maintenance needs. Compact size allows more units to fit on a single trailer.
  • Up to 10.5 MPH forward speeds (on 48", 52" & 61" models) and up to 5 MPH reverse speeds keep productivity at a maximum. Up to 8.5 mph forward on 32 & 36" models.
  • 32" & 36" Advantage or 48", 52" or 61" Velocity Plus™ Cutter Deck deliver an immaculate quality-of-cut. Three year limited warranty on the cutter decks.
  • Spacious operator platform with coil suspension delivers a smooth the ride and reduces operator fatigue.
  • Wide operator platform is made from heavy gauge steel with extruded star pattern for no-slip footing. Platform is wide and unobstructed.
  • Kawasaki FX series engines are commercial-grade and feature canister air filters, and twin barrel carburetors.
  • The Kohler EFI (electronic fuel injection) engine is incredibly powerful and an efficient powerhouse. The engine will start easier and is more fuel efficient than carbureted models, reducing overall operating cost.
  • Scag tough main frame construction delivers solid strength and ensures years of trouble-free service. The main frame was designed for strength and longevity.
  • Ogura GT 3.5, 250 ft.lbs. (61") or GT 2.5, 150 ft.lbs. (32", 36", 48", 52") PTO clutch brake engages and stops the cutter blades smoothly and safely.
  • Adjustable air gap ensures long component life.
  • Convenient, full-featured instrument panel has Tiger Eye: Advanced On-Board Monitoring System, ignition key, PTO switch, throttle and choke. The fuel gauge is located on top of the fuel tank, right next to the instrument panel for easy viewing.
  • Extra- large Operator Comfort Cushion allows for comfortable operation, hour after hour. Cushion is removable without tool for easy access to hydraulic and engine compartment.
  • Large diameter, padded steering control levers are very comfortable and easy on your hands. The hand force required to control the V-Ride II is minimal and the lever action is extremely smooth.
  • Heavy-duty blade drive spindles provide reliable performance season after season. The Scag spindle is more than tough enough to handle the high horsepower and torque requirements of this mower. Three year limited warranty on the spindles.
  • Dual 12cc hydraulic pumps and dual 14ci cast iron, high-torque wheel motors provide smooth, positive and reliable power to the drive wheels (48", 52" & 61"). 10cc hydraulic pump and 12ci wheel motors (32" & 36") Pressure relief valves in the pumps protect the system from internal pressure spikes and add to pump life.
  • 8 gallon (48", 52" & 61"), 6.75 gallon (36") and 5 gallon (32")  fuel tanks keeps you in the field cutting grass. Fuel tanks features a fuel level gauge and an extra large, angled filler neck for easy filling.
  • Interlocked parking brake prevents the mower from being driven with the brake on, stopping premature brake wear.
  • Auxiliary canister air filter system is standard equipment on all V-Ride II mowers with Kawasaki FX engines. This provides extended service intervals and longer engine life.
  • Easily adjust cutting heights with the convenient, easy to lift hand lever. Wide range of adjustment from 1-1/2" to 4-1/2" in 1/4" increments. Auto-lock in transport position with a simple thumb release.
  • Deck leveling adjustment brackets at all four corners of the deck allows for easy in-the-field deck leveling and pitch adjustment.
  • Tri-Plate cutter deck top is incredibly strong. .485" deck top thickness from three separate layers of steel (7ga., 10ga, and 11ga.)
  • "Split-Steel" pulleys are used on load carrying areas like the cutter deck spindles and pump drive systems. Split steel pulleys are stronger than cast iron or stamped pulley designs. Our pulleys are strong for long life and lightweight for reduced inertia and decreased wear on the cutter deck drive system.
  • No plastic pulleys - Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys.
  • Tapered locking hubs are used on spindle shafts and pump input shafts for easy pulley removal and service for years to come.
  • High-quality bearings and bearing debris guards on idler pulleys ensure long, reliable service.
  • Self-adjusting belt systems effortlessly keep belts in constant adjustment for maximum life and minimum maintenance.
  • Tapered roller bearings are utilized in the front caster wheel axles and caster yoke pivots for durability and reduced maintenance.
  • Extra-large drive tires ensure better traction, less turf tearing and easy curb climbing. Drive tires are 4-ply for added durability. 24x12-12 (61"), 24x9.5-12 (48" & 52"), 20x8-10 (36") or 20x6.5-10 (32").
  • Flat-Free front caster tires eliminate downtime associated with flat tires. 13x6.5-6 (61"), 13x5-6 (48" & 52"), or 11x4-5 (32" & 36").
  • Four tie-down points are built-in on the front and rear of the mower (2 front, 2 rear) for fast and convenient loading and unloading on trailers.
  • Custom-Cut Baffle allows you to customize the cutter deck to your individual cutting conditions.
  • Simple, easy to service, neutral and tracking linkages. It's the same design that we use on other Scag riding mowers. No cable systems or complicated bracketing. Straightforward designs with proven reliability.
  • User-friendly mower design allows access to the engine and filters, for easy maintenance. Engine oil drain hose included.
  • Solid hillside stability due to a low center-of-gravity, large tires and a wide stance.
  • Marbain cutter blades stay sharp longer for reduced maintenance.
  • High quality electrical components such as switches, wiring and harness looms are used throughout the Scag mower line for dependable service.
  • Rear louvers on rear panel allows for increased air flow and cooling for the hydraulic pump drive system. Rear panel is removable for easy maintenance.
  • Sealed fuse holder keeps the elements out to help prevent corrosion and electrical issues.
  • Fuel tank shut-off and fuel gauge are located on top of the tank, near the instrument panel for easy access and viewing.
  • The Scag "Simply the Best" commercial warranty stands behind you and your mower for years of profitable service.
SCAG V-RIDE II MOWER MODELS / ENGINE AND CUTTER DECK COMBINATIONS
SVRII-32A-16FX:  32" Advantage™ Cutter Deck, 16hp Kawasaki FX541 air-cooled engine
SVRII36A-19FX:  36" Advantage™ Cutter Deck, 19hp Kawasaki FX600 air-cooled engine
SVRII-36A-23BV:  36" Advantage™ Cutter Deck, 23hp Vanguard air-cooled engine
SVRII48V-22FX:  48" Velocity Plus™ Cutter Deck, 22hp Kawasaki FX691 air-cooled engine
SVRII48V-25CV-EFI:  48" Velocity Plus™ Cutter Deck, 25hp Kohler EFI air-cooled engine
SVRII52V-26FTEFI:  52" Velocity Plus™ Cutter Deck, 26hp Kawasaki FT730V air-cooled EFI engine
SVRII52V-25CV-EFI:  52" Velocity Plus™ Cutter Deck, 25hp Kohler EFI air-cooled engine
SVRII52V-37BV-EFI:  52" Velocity Plus™ Cutter Deck, 37hp Vanguard EFI air-cooled engine
SVRII61V-38FX-EFI:  61" Velocity Plus™ Cutter Deck, 38hp Kawasaki FX1000 air-cooled EFI engine
SVRII61V-38CV-EFI:  61" Velocity Plus™ Cutter Deck, 38hp Kohler EFI air-cooled engine
SVRII61V-40BV-EFI:  61" Velocity Plus™ Cutter Deck, 40hp Vanguard EFI air-cooled engine

 SCAG V-RIDE II PRODUCT DIMENSIONS

V-Ride II Product Dimensions: 32" V-Ride II 36" V-Ride II 48" V-Ride II 52" V-Ride II 61" V-Ride II
Length: foot plate down 65.25" 65.25" 67.5" 69.5" 72.75"
Tracking Width: 32" 36" 48" 48" 48"
Width (chute down):  43" 47.75" 61.25"  65.25" 73.5"
Width (chute in transport position): 33.75" 37.25"  49.75" 53.75" 62.75"
Weight:  818 lbs 832 lbs 1015 lbs.  1000 - 1022 lbs. 1127-1173 lbs.
Overall Height: 47" 47.0" 47.25" 47.25" 47.25"

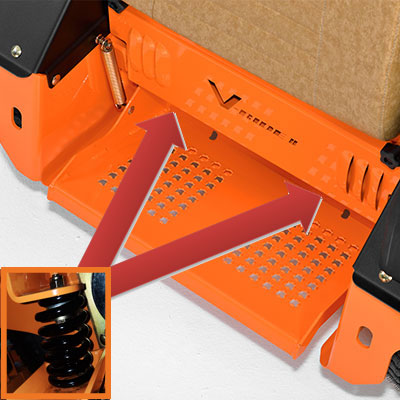

Suspension Platform

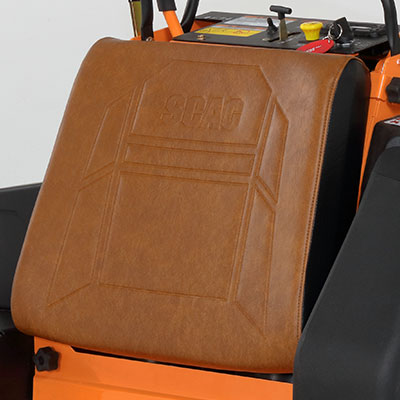

Extra Large Comfort Cushion

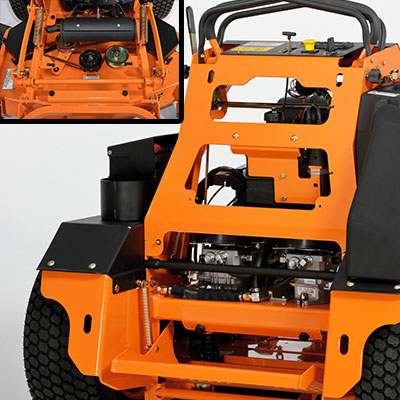

Easy Maintenance

Large Padded Steering Handles

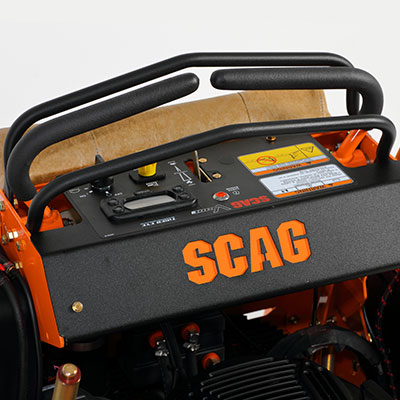

Full Featured Instrument Panel

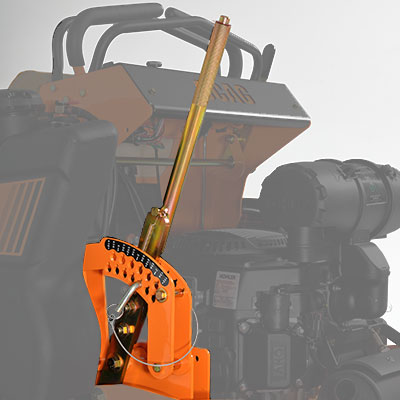

Easy Adjust Cutter Deck Lift

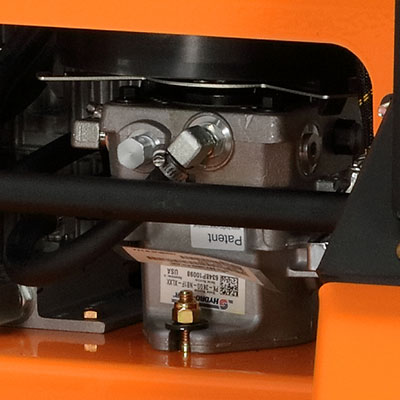

Dual (12 or 10cc) Hydraulic
Pumps
Optional Accessories
Click here for a larger picture.
Complete mulching systems with individual chambers for the best possible mulching performance.
Click here for a larger picture.
The Scag Fabric Bag Grass Catcher features a 4-cubic-foot capacity and is lightweight for easy dumping.
Click here for a larger picture.
Slide the Blade Buddy over the end of your cutter blades during blade changes to keep the blade from turning.
Click here for a larger picture.
Operator Controlled Discharge Chute allows you to quickly and easily block off the discharge chute while mowing.
(not available on 36" model)
Click here for a larger picture.

LED LIGHT KIT
2,800 lumen LED light kit is easy to mount and provides a bright white light.

Click here for a larger picture.
12" chrome wheel covers will add 2MPH to your Scag mower....ok, maybe not. But they look awesome!
(not available on 36" model)
