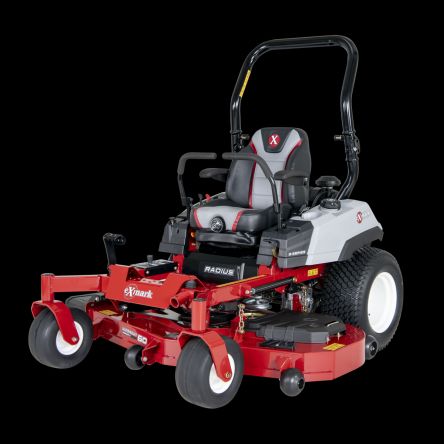

Exmark Radius E, S & X Series Riders




PRODUCT HIGHLIGHTS

Radius Features

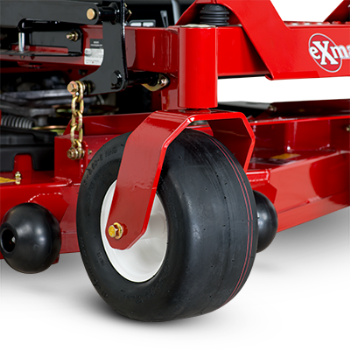

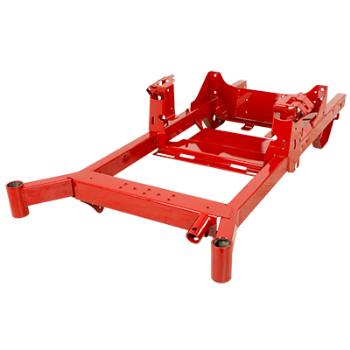

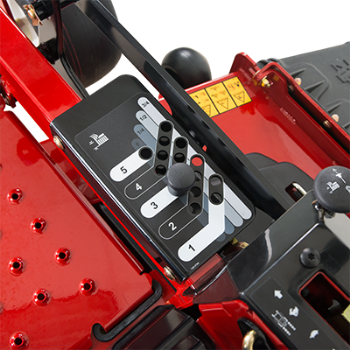

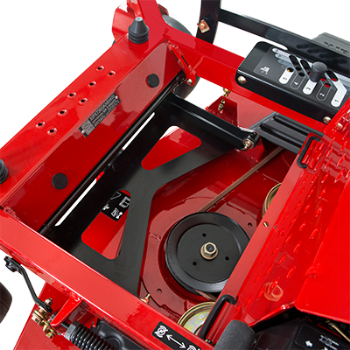

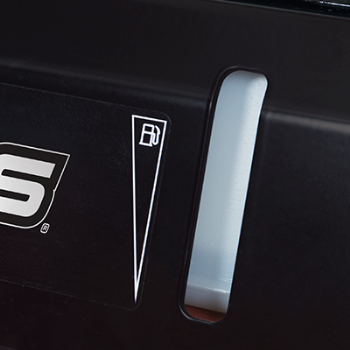

Heavy Duty Unibody Frame Height of Cut Made Easy Easy Maintenance w/flip up cover Large Front Caster Wheels Fuel Gauge Window


              Available in E, S or X Series.  Great for the large home owners, big estates, or light to medium commercial applications.

     Radius E-Series features:

    • Drive System: Two Hydro Gear ZT2800 (44, 48 & 52") and ZT3100 (60") hydrostatic transmissions with charge pumps, no hoses, integrated cooling fans, remote reservoir, spin-on filter and heavy-duty components.
    • Speed: Infinitely variable speed selection from 0–8.0 mph forward, 0–5.0 mph reverse.
    • PTO Engagement: MagStop electromagnetic 125-ft-lb. clutch.
    • Fuel Capacity: 7-gallon single fuel tank with single fill location.
    • Drive Wheel Release: Allows unit movement without engine running.
    • Safety Package: Operator Presence Controls (OPC) with safety interlock system indicators.
    • Casters: .375" thick caster yoke arms
    • Cup Holder: Standard.
    • Deck Construction:  10-gauge top and a 7 gauge sides, that is formed and welded with reinforcement/guard on leading edge.
    • Deck Style:  Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulchchute and option to bag or mulch.
    • Deck Lift:  Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
    • Cutting Heights:  1.5" to 5.0" in 1/4" increments, adjustable from operator's seat.
    • Blade-Tip Speed:  Approximately 18,500 fpm.
    • Tractor Frame:  Unibody, welded, heavy-duty 2"x3" box tube steel.
    • Steering Control:  Hydraulically dampened twin levers adjustable both fore and aft. Also has 3-position height adjustment.
    • Front Caster Tires:  Large 13 x 6.50-6, smooth tread, pneumatic.
    • Drive Tires:  22 x 9.50-12 (48 & 52"), and 22x10.50-12 (60") Super Turf®.
    • Parking Brake:  Lever-actuated pawl brake.
    • Seat:  Commercial Grade High Back contoured foam padded with armrests. Hinged mounted, adjustment: Fore and aft from
    • Blade Spindles:  No maintenance, sealed and non-greasable spindles; 7.50"-diameter cutter housing contains 17mm (.67")diameter spindle shaft and hex blade drive.
    • Electrical:  12-volt battery with 15-amp alternator.


    RADIUS E-SERIES MOWER MODELS / ENGINE AND
    CUTTER DECK COMBINATIONS

    RAE702GEM44300: Exmark 22.5 hp twin cylinder air-cooled engine,  44" Ultracut Series 3 Fabricated Deck
    RAE708GEM48300: Exmark 24.5 hp twin cylinder air-cooled engine,  48" Ultracut Series 3 Fabricated Deck
    RAE708GEM52300: Exmark 24.5 hp twin cylinder air-cooled engine, 52" Ultracut Series 3 Fabricated Deck
    RAE708GEM60300: Exmark 24.5 hp twin cylinder air-cooled engine, 60" Ultracut Series 3 Fabricated Deck

    RADIUS E-SERIES DIMENSIONS

    E-Series Radius Product Dimensions: 44" Radius E 48" Radius E 52" Radius E 60" Radius E
    Length: 81.7" 81.7" 81.7" 82.2"
    Width 45.4" 59.5"  64.3" 72.3"
    Weight:  798lbs. 849 lbs. 862 lbs. 901 lbs.
    Overall Height: 69.7" 69.7" 69.7" 69.7"
    Warranty 4 year/500 hour limited 4 year/500 hour limited 4 year/500 hour limited 4 year/500 hour limited





    Radius S-Series Features:

    • Engine: Exmark 708cc V-Twin engine
    • Air Filter:  Heavy-duty cyclonic air filtration system
    • Drive System:  Two Hydro Gear ZT3100 hydrostatic transmission with charge pumps, relief valves, no hoses, integrated cooling fans, remote reservoir, spin-on filter and heavy-duty components.  The 60 inch rear discharge deck model uses dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
    • Speed:  Infinitely variable speed selection from 0–9.0 mph forward, 0–5.0 mph reverse.
    • PTO Engagement:  MagStop electromagnetic 125-ft-lb clutch.
    • Fuel Capacity:  7-gallon single fuel tank with single fill location.
    • Drive Wheel Release:  Allows unit movement without engine running.
    • Safety Package:  Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
    • Casters:  .375" thick caster yoke arms
    • Cup Holder:  Standard.
    • Deck Construction:  10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
    • Deck Style:  Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch, and a 60" rear discharge deck is also available.
    • Deck Lift:  Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
    • Cutting Heights:  1.5" to 5.0" deck height in 1/4" increments, adjustable from operator's seat.
    • Blade-Tip Speed:  Approximately 18,500 fpm.
    • Tractor Frame:  Unibody, welded, heavy-duty 2"x3" box tube steel.
    • Steering Control:  Hydraulically dampened twin levers adjustable both fore and aft. Also has 3-position height adjustment
    • Seat:  Commercial Grade High Back contoured foam padded with armrests. Hinged mounting, with adjustable isolation technology, set to operators desired weight.
    • Front Caster Tires:  13 x 6.50-6, smooth tread, pneumatic
    • Drive Tires:  23 x 9.50-12 Super Turf on 48 and 52", and 23 x 10.5-12 Super Turf® on the 60" deck machines.
    • Parking Brake:  Lever-actuated pawl brake.
    • Blade Spindles:  No maintenance, sealed and non-greasable spindles; 7.50"-diameter cutter housing with 17mm(.67")diameter spindle shaft and splined blade driver.
    • Electrical:  12-volt battery with 15-amp alternator.
RADIUS S-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS
RAS708GEM483C3: 48" Ultracut Series 3 Fabricated Deck, 24.5hp Exmark V-Twin air cooled engine
RAS708GEM523C3: 52" Ultracut Series 3 Fabricated Deck, 24.5hp Exmark V-Twin air cooled engine
RAS708GEM603C3: 60" Ultracut Series 3 Fabricated Deck, 24.5hp Exmark V-Twin air cooled engine
RAS708GEM60RC3: 60" Rear Disharge Ultracut Series 3 Fabricated Deck, 24.5hp Exmark V-Twin air cooled engine

EXMARK RADIUS S-SERIES DIMENSIONS

S-Series Radius Product Dimensions: 48" Radius 52" Radius 60" Radius 60" Radius Rear Discharge
Length: 81.7" 81.7" 82.2" 84.3"
Width 59.5" 64.3"  72.3" 66"
Weight:  873 lbs 892 lbs.  941 lbs. 1012 lbs.
Overall Height: 70.2" 70.2" 70.2" 70.2"
Warranty 4 year/750 hour limited 4 year/750 hour limited 4 year/750 hour limited 4 year/750 hour limited

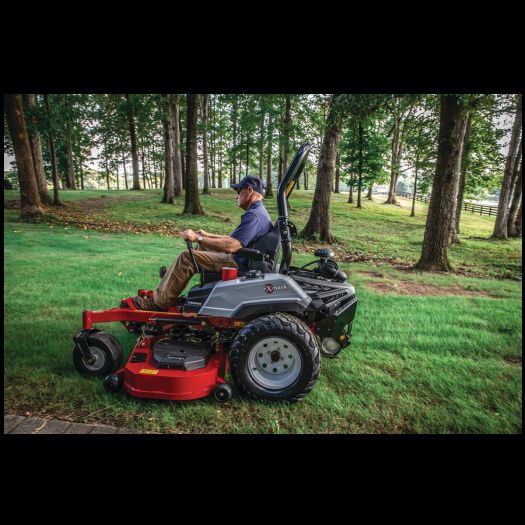

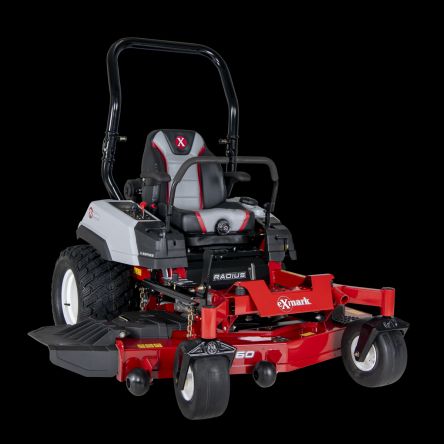

    Radius X-Series Features:

    • Engine: Kawasaki FX series commercial engines
    • Air Filter:  Heavy-duty cyclonic air filtration system
    • Drive System:  Two Hydro Gear ZT3400 hydrostatic transmission with charge pumps, relief valves, no hoses, integrated cooling fans, remote reservoir, spin-on filter and heavy-duty components.
    • Speed:  Infinitely variable speed selection from 0–10.0 mph forward, 0–6.0 mph reverse.
    • PTO Engagement:  MagStop electromagnetic 1725-ft-lb clutch.
    • Fuel Capacity:  7-gallon single fuel tank with single fill location.
    • Drive Wheel Release:  Allows unit movement without engine running.
    • Safety Package:  Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
    • Casters:  .375" thick caster yoke arms
    • Cup Holder:  Standard.
    • Deck Construction:  10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
    • Deck Style:  Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
    • Deck Lift:  Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
    • Cutting Heights:  1.5" to 5.0" in 1/4" increments, adjustable from operator's seat.
    • Blade-Tip Speed:  Approximately 18,500 fpm.
    • Tractor Frame:  Unibody, welded, heavy-duty 2"x3" box tube steel.
    • Steering Control:  Hydraulically dampened twin levers adjustable both fore and aft. Also has 3-position height adjustment
    • Seat:  Commercial Grade High Back full suspension seat.
    • Front Caster Tires:  13 x 6.50-6, smooth tread, pneumatic
    • Drive Tires:  24 x 9.50-12 on 48 and 52", and 24 x 10.5-12 on the 60" deck machine.
    • Parking Brake:  Lever-actuated pawl brake.
    • Blade Spindles:  No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98")diameter spindle shaft and splined blade driver.
    • Electrical:  12-volt battery with 15-amp alternator.
RADIUS X-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS
RAX651GKA484A3: 48" Ultracut Series 4 Fabricated Deck, 20.5hp Kawasaki FX651V air cooled engine
RAX691GKA524A3: 52" Ultracut Series 4 Fabricated Deck, 22hp Kawasaki FX691V air cooled engine
RAX730GKA604A3: 60" Ultracut Series 4 Fabricated Deck, 23.5hp Kawasaki FX730V air cooled engine

EXMARK RADIUS X-SERIES DIMENSIONS

X-Series Radius Product Dimensions: 48" Radius 52" Radius 60" Radius
Length: 81.7" 81.7" 82.2"
Width 59.5" 64.6"  72.7"
Weight:  937 lbs 957 lbs.  1006 lbs.
Overall Height: 70.4" 70.4" 70.4"
Warranty 4 year/1000 hour limited 4 year/1000 hour limited 4 year/1000 hour limited

Optional Accessories:


2-bagger commercial-grade powered collection system. Switch between bag discharge and side discharge with quick-attach. Less clogging with larger-diamer tubes. Compact design minimizes trailer space for easy maneuverability. Dust reduction with sealed hoods.

Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).

Conveniently located within easy reach of the operator, this trash container features a 2.5-gallon capacity and durable, easy-to-clean mesh receptacle. See dealer for fit- up information.

Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models.
(Does not fit Quest.)

The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.

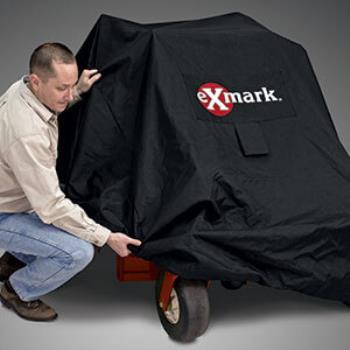

Protect your zero-turn mower from the elements with this sturdy, waterproof cover. It’s constructed from tough 600-denier polyester, making it abrasion- and tear- resistant. Its elastic opening provides a secure, snug fit.
