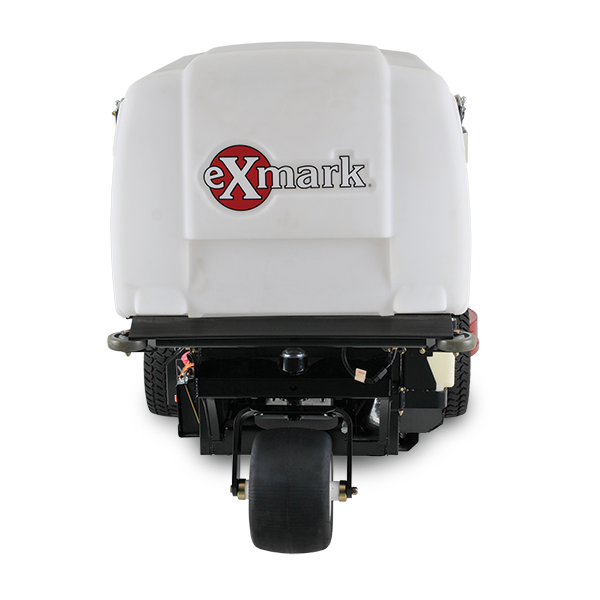

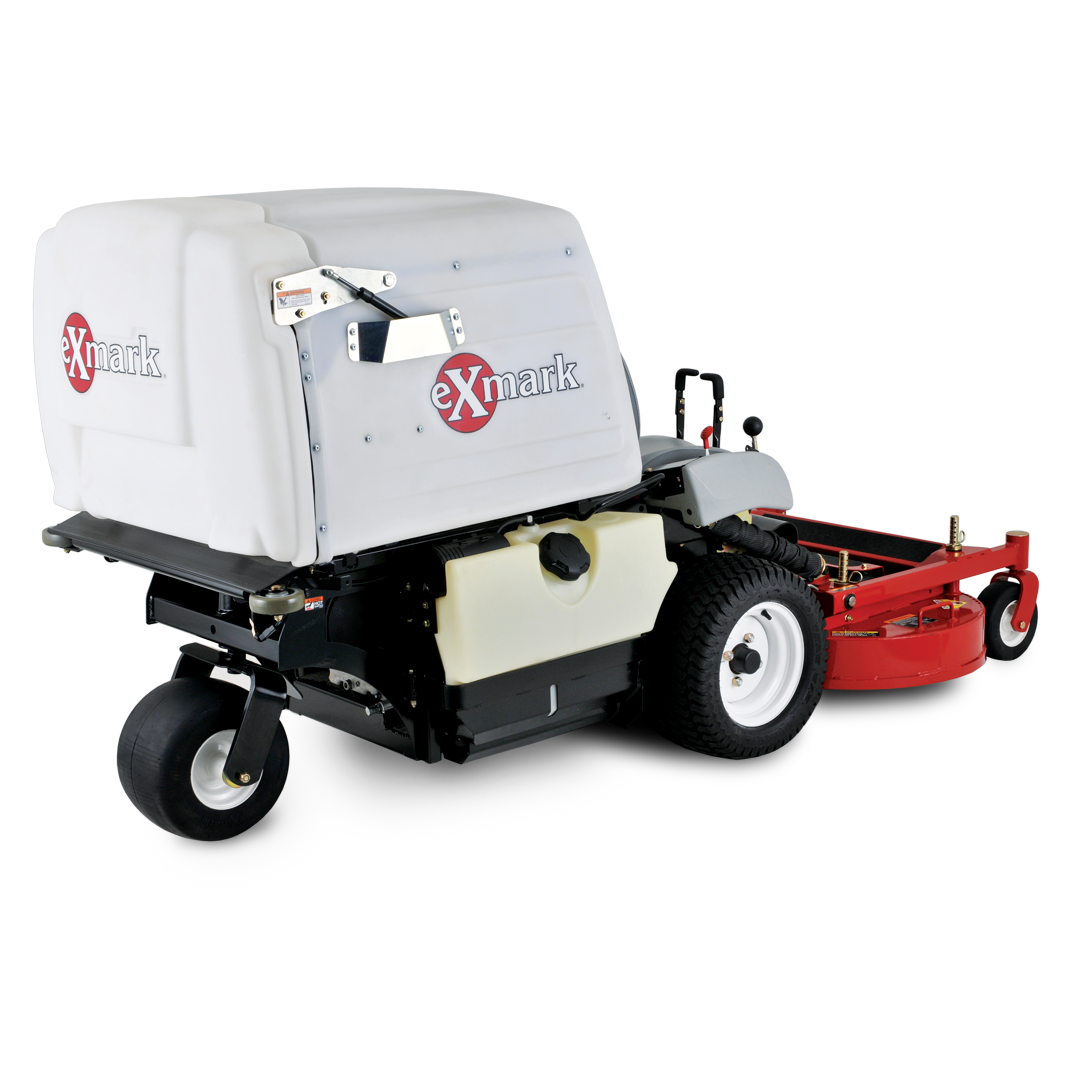

Exmark Navigator-Series Riders



PRODUCT HIGHLIGHTS


    Navigator-Series features:
    • Drive System: New Dual Hydro-Gear 12 cc variable displacement pumps power Hydro-Gear H Series motors.
    • Speed: Infinitely variable speed selection from 0–7.0 mph (11.3 kmph) forward, 0–5.5 mph (8.9 kmph) reverse.
    • PTO Engagement: Lever-actuated clutching belt with 6" brake band.
    • Fuel Capacity: 7.5-gallon (28.4-L), pivoting tank for easier engine service.
    • Drive Wheel Release: Allows unit movement without engine running.
    • Safety Package: Operator Presence Controls (OPC) and drive system interlock.
    • Casters: 0.50" thick rear caster fork
    • Bagger Capacity: 9.5 bushel (76 gallons).
    • Deck Construction: 7-gauge sides joined by a continuous bead weld to a 10-gauge top, 3/16" wear guard is welded to the entire base of the deck, 7-gauge deck spindle supports, 0.25"-thick strap steel deck supports.
    • Deck Style:  Full Floating rear discharge cutting deck w/heavy duty gear driven spindle assembly. Patented Fill Reduction baffles standard.
    • Blade Spindles:  Heavy Duty cast iron right-angle gearboxes.
    • Cutting Heights:  1.0" (2.5 cm) to 4.0" (10.2 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.
    • Blade-Tip Speed:  Approximately 18,500 fpm.
    • Tractor Frame:  Channeled and fully welded 1.5" x 1.5" x 0.187" wall tubing with a ground clearance of 4.0", str
    • Steering Control:  FeatherTouch hand-control drive levers, low-force constant speed lever.
    • Front Caster Tires: 8 x 3.0-4 semi-pneumatic.
    • Drive Tires models:  18 x 10.5-10 Multi-Trac® C/S.
    • Parking Brake:  Wet disc, internal in wheel motor.
    • Seat:  High-back, "EVC" (Elastomeric Vibration Control) seat, which has no springs to break.
    • Electrical:  12-volt battery with 15-amp alternator.



    Year Round Exmark Navigator Accessories

    Sweeper Attachment,
    perfect for lawn dethatching    		 Electric dumping bagger so operator does not have to get off machine Snow-dirt plow 2-stage Snowthrower
NAVIGATOR-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS
NVS740GKC42000: 23hp Kohler ECV730EFI fuel injected engine, 42" CD deck included
NVS730EKC48000: 23hp Kohler ECV730EFI fuel injected engine, 48" CD deck included

EXMARK NAVIGATOR-SERIES DIMENSIONS

Navigator-Series Product Dimensions: 42" Navigator 48" Navigator
Length: 91.8" 94.5"
Width 43.2"  49.2"
Overall Height: 51.2" 51.2"
Weight: 1140 lbs. 1170 lbs.
Warranty 2 year commercial,
2 year consumer		 2 year commercial,
2 year consumer
