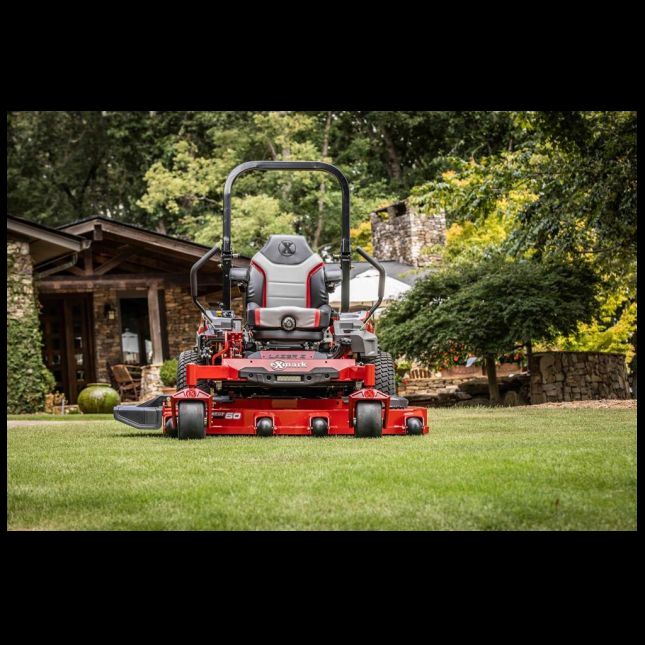

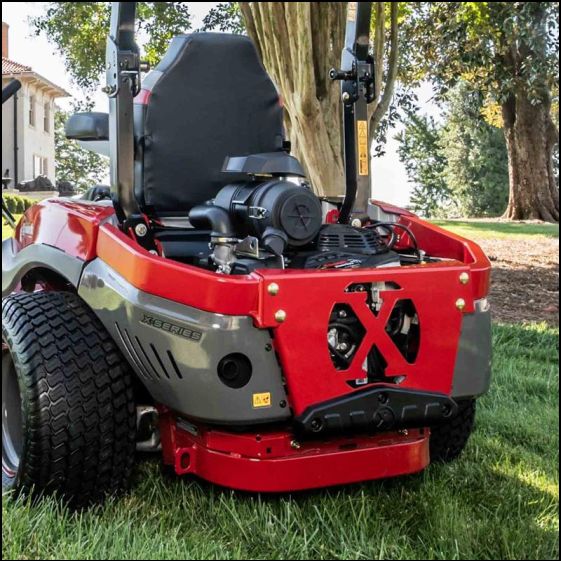

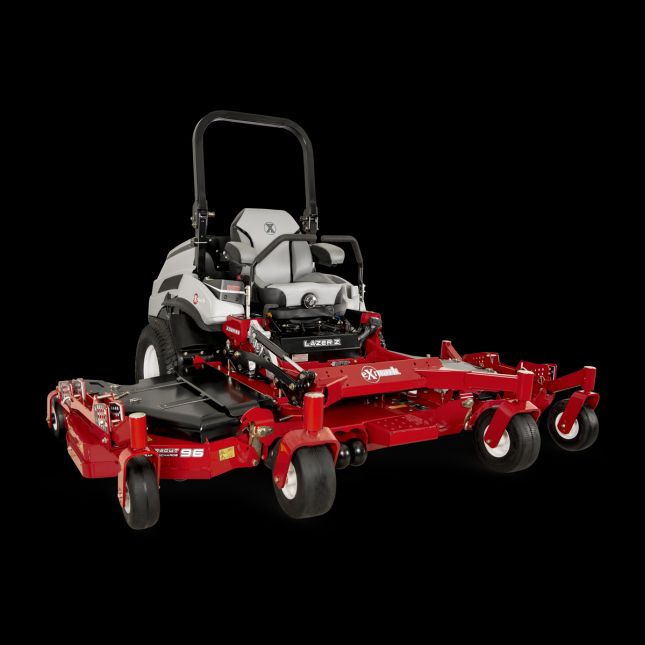

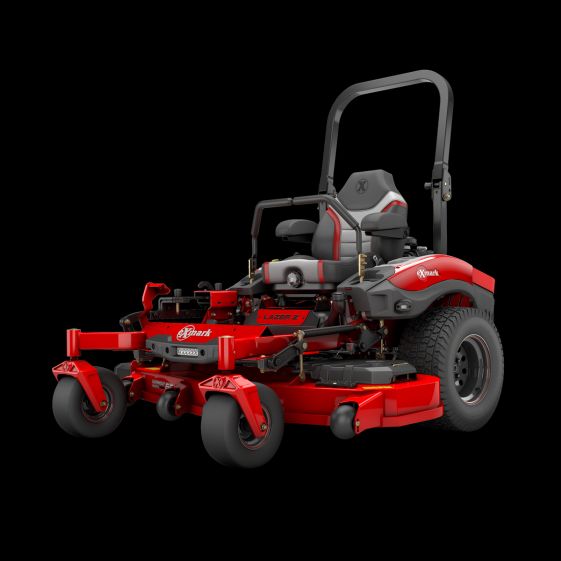

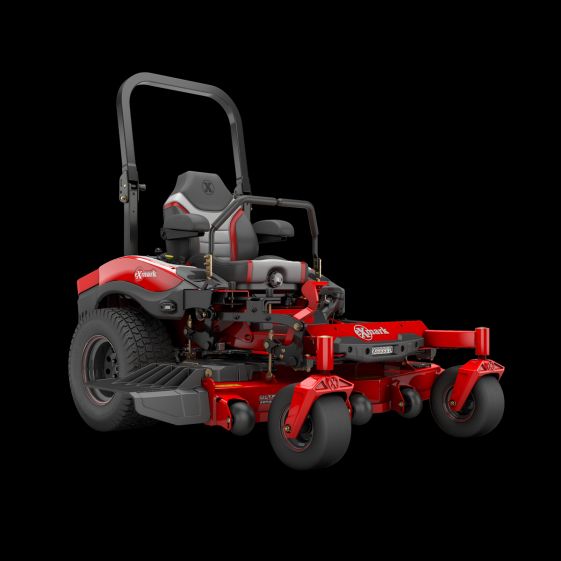

Exmark Lazer LRX-Series Riders



And with our top-rated Lazer Z LRX-Series, there are plenty of boxes to check. For starters, you can choose from five rugged, commercial-grade engines, including high efficiency
Electronic Fuel Injection (EFI) options. Which also features our exclusive EGov and RED technology which can boosts fuel efficiency up to 41%. The LRX-Series also features our
UltraCut™ Series 6 deck in 52-, 60, 72 and 96-inch cutting widths. Whatever combination you choose, operators will ride in unrivaled comfort thanks to our unique seating system.
There’s even a standard 12-volt adapter to keep devices charged. So, if you’re looking for our top-of-the-line mower, the Lazer Z LRX-Series should be at the top of your list.


PRODUCT HIGHLIGHTS



    LRX-Series features:
    • Drive System 52, 60 & 72": Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors
    • Drive System 96": Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 18 cubic inch motors.
    • Speed 52 & 96": Infinitely variable speed selection 0–10.5 mph forward, 0–6.0 mph reverse.
    • Speed 60 & 72": Infinitely variable speed selection from 0–11.5 mph forward, 0–7.0 mph reverse
    • PTO Engagement 52": MagStop electromagnetic 200-ft-lb clutch with spot brake.
    • PTO Engagement 60, 72 & 96": MagStop Electromagnetic 250-ft-lbs clutch with spot brake
    • Fuel Capacity: 12-gallon single fuel tank with single fill location.
    • Drive Wheel Release: Allows unit movement without engine running.
    • Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
    • Casters: .50" thick caster yoke arms.
    • Cup Holder: Standard.
    • Deck Construction 52, 60 & 72" models: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.
    • Deck Construction 96" model: 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
    • Deck Style:  Full-floating UltraCut Series 6 with heavy-duty spindle. Side discharge standard with the option to bag or mulch.
    • Blade Spindles:  No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30mm(1.18")diameter spindle shaft and splined blade driver.
    • Deck Lift 52, 60 & 72" :  Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
    • Deck Lift 96": Electric over hydraulic push button control
    • Cutting Heights:  1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.
    • Blade-Tip Speed:  Approximately 18,500 fpm.
    • Tractor Frame:  Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
    • Steering Control:  Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness, and adjustable to 2 height positions.
    • Front Caster Tires: 13 x 5.0-6 on 52", and 13 x 6.5-6 on 60 & 72" smooth-tread, semi-pneumatic.
    • Drive Tires 52" models:  23 x 9.5-12 Super Turf
    • Drive Tires 60, 72 &96" models:  24 x 12-12 Super Turf
    • Parking Brake:  Lever-actuated disc brake.
    • Seat:  Deluxe, three-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
    • Blade Spindles:  No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98") diameter spindle shaft and splined blade driver.




    Laser LRX-Series Z Features

    Heavy Duty Unibody Frame

    Our one-piece body frame is a classic case of “less is more.” Because, fewer parts equal more strength. And, more durability. So, in the interest of accuracy, the Lazer Z’s unibody frame is actually a case of “less is way more.”


    Patented RED Technology

    Enabling communication and response between key systems on your mower with defined operation modes, system monitoring and clutch saver features.




    Hydro Drive, Simplified

    Our hydro drive system has no hoses to leak and just one easy-to-change belt. Only simple, annual maintenance is required. It also lowers the center of gravity for improved handling.



    Tool-less Belt Cover Removal

    Deck and hydro belt can be installed without using any tools.



    UltraCut Series 6 Deck

    This deeper 5.5" full-floating deck uses double-row bearings with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.


    What is Red Technology?  Watch this video and see all about it!

LAZER LRX-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS
LRX801GKA526Q1: 52" Ultracut Series 6 Fabricated Deck, 25.5hp Kawasaki FX801V air cooled engine, plus the Adapt - quick deck rake feature
LRX801GKA606Q1: 60" Ultracut Series 6 Fabricated Deck, 25.5hp Kawasaki FX801V air cooled engine, plus the Adapt - quick deck rake feature
LRX921GKA606Q1: 60" Ultracut Series 6 Fabricated Deck, 31hp Kawasaki FX921V air cooled engine, plus the Adapt - quick deck rake feature
LRX820AKA606Q1: 60" Ultracut Series 6 Fabricated Deck, 34.5hp Kawasaki FX820EVO air cooled fuel injected engine, plus the Adapt - quick deck rake feature
LRX993EBX606Q1: 60" Ultracut Series 6 Fabricated Deck, 37hp Vanguard EFI air cooled engine with oil guard. plus the Adapt - quick deck rake feature
LRX980EKC606Q1: 60" Ultracut Series 6 Fabricated Deck, 38hp Kohler ECV980 EFI air cooled engine with electronic governor, plus the Adapt - quick deck rake feature
LRX921GKA726Q1: 72" Ultracut Series 6 Fabricated Deck, 31hp Kawasaki FX921 air cooled engine, plus the Adapt - quick deck rake feature
LRX820AKA726Q1: 72" Ultracut Series 6 Fabricated Deck, 34.5hp Kawasaki FX820EVO air cooled fuel injected engine, plus the Adapt - quick deck rake feature
LRX993EBX726Q1: 72" Ultracut Series 6 Fabricated Deck, 37hp Vanguard EFI air cooled engine with oil guard. plus the Adapt - quick deck rake feature
LRX980EKC726Q1: 72" Ultracut Series 6 Fabricated Deck, 38hp Kohler ECV980 EFI air cooled engine with electronic governor, plus the Adapt - quick deck rake feature

EXMARK LAZER LRX-SERIES DIMENSIONS

LRX-Series Lazer Product Dimensions: 52" Lazer LRX 60" Lazer LRX 72" Lazer LRX 96" Lazer LRX
Length: 86.1" 84.1" 86.1" 95.8"
Width 64.8"  72.8" 84.9" 101" wings down
72.5" wings folded up
Weight:  1200 lbs.  1256 lbs. 1304 lbs. 2200 lbs.
Overall Height: 70.5" 70.5" 70.5" 70.5"
Acres Per Hour 4.71 5.36 6.45 8.13
Warranty 5 years or 1500 hours,
No hour limit the first 2 years
5 years or 1500 hours,
No hour limit the first 2 years
5 years or 1500 hours,
No hour limit the first 2 years
5 years or 1500 hours,
No hour limit the first 2 years


Optional Accessories:


3-bagger commercial-grade powered collection system. Switch between bag discharge and side discharge with quick-attach. Less clogging with larger-diamer tubes. Compact design minimizes trailer space for easy maneuverability. Dust reduction with sealed hoods.

Our new ergonomically-advanced operator seat features long-travel suspension and our exclusive iso-mount seat isolation. This seating system increases productivity by reducing operator fatigue, so each worker can work stronger, longer.

Adjust deck rake quickly and easily without tools, from the operator seat, to optimize cut quality and performance in a variety of turf types and conditions. Adapt is particularly useful when mowing in wet, overgrown, or lush conditions, or stemmy grasses and weeds.

Power Deck Lift - Change your deck from any cutting height to the transport position quickly and easily, with a convenient foot pedal actuator switch that lets you keep your hands safely on the drive levers. Created specifically for your 48-72" cutting deck Lazer Z, its electronic motor features Exmark's signature durability and a low-profile design that leaves plenty of trailer space.



The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.

Operator Controlled Discharge (Foot)
The infinitely adjustable blocker door opens and closes by using the convenient foot pedal, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools.
