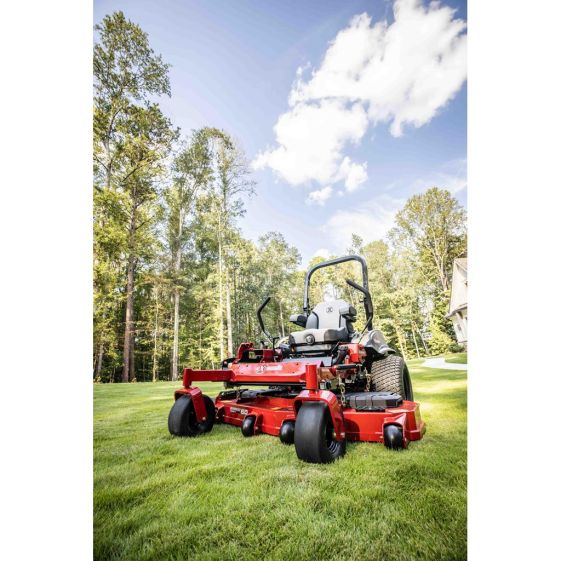

Exmark Lazer LRS-Series Riders



With the top-rated Lazer Z S-Series of zero turn riders, you can choose different engines, including a Kawasaki FX series carburated engine or the eco-friendly, Electronic Fuel Injection (EFI).  The UltraCut™ Series 4 cutting deck are available in 52, 60 or 72 inches. Want tough? Try a 10-gauge, formed and continuously seam-welded top and a 7-gauge side skits.
All with welded spindle mounting sites and full-floating 4-point suspension with four adjustable anti-scalp rollers.  Select Lazer Z S-Series models offer Smart Controller, and this easy-to-use interface has a wealth of user data like fuel level, interlock status, PTO and total hours, maintenance reminders and machine health status.

PRODUCT HIGHLIGHTS


              LRS-Series features:
    • Drive System: Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors..
    • Speed: Infinitely variable speed selection 0–10.0 mph forward, 0–7.0 mph reverse.
    • PTO Engagement: MagStop electromagnetic 200-ft-lb clutch with spot brake.
    • Fuel Capacity: 12-gallon single fuel tank with single fill location.
    • Drive Wheel Release: Allows unit movement without engine running.
    • Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
    • Casters: .50" thick caster yoke arms.
    • Cup Holder: Standard.
    • Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.
    • Deck Style:  Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
    • Deck Lift:  Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
    • Cutting Heights:  1.0"  to 5.5" in 0.25" increments adjustable from operator’s seat.
    • Blade-Tip Speed:  Approximately 18,500 fpm.
    • Tractor Frame:  Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
    • Steering Control:  Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness, and adjustable to 2 height positions.
    • Front Caster Tires: 13 x 5.0-6 on 48 & 52", and 13 x 6.5-6 on 60 & 72" smooth-tread, semi-pneumatic.
    • Drive Tires 52" models:  23 x 9.5-12 Super Turf®
    • Drive Tires 60&72" models:  24 x 12-12 Super Turf®
    • Parking Brake:  Lever-actuated disc brake.
    • Seat:  Deluxe, two tone, bolstered seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
    • Blade Spindles:  No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98") diameter spindle shaft and splined blade driver.
    • Electrical: 12-volt battery with 15-amp alternator.
    • Electrical on EFI engine machines: 12-volt battery with 20-amp alternator.


    Lazer Z Features

    Heavy Duty Unibody Frame

    Our one-piece body frame is a classic case of “less is more.” Because, fewer parts equal more strength. And, more durability. So, in the interest of accuracy, the Lazer Z’s unibody frame is actually a case of “less is way more.”


    On-Board Diagnostics

    Check vital functions at a glance on the digital screen. An electronic fuel gauge with low fuel warning on all Lazer Z units, battery voltage warning, hour meter and OPC safety switch monitoring make troubleshooting easy.



    Hydro Drive, Simplified

    Our hydro drive system has no hoses to leak and just one easy-to-change belt. Only simple, annual maintenance is required. It also lowers the center of gravity for improved handling.



    Tool-less Belt Cover Removal

    Deck and hydro belt can be installed without using any tools.

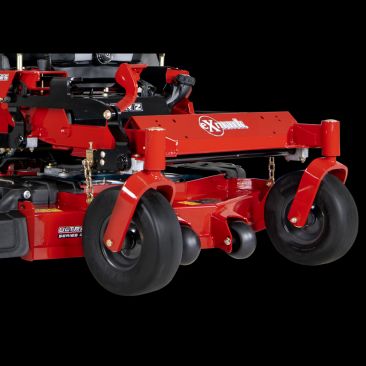

    Ultracut Series 4 Deck

    This full-floating deck uses maintenance free spindle with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.

LAZER LRS-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS
LRS749AKC524A2: 52" Ultracut Series 4 Fabricated Deck, 26.5hp Kohler ECV749 air cooled fuel injected engine
LRS801GKA604A1: 60" Ultracut Series 4 Fabricated Deck, 25.5hp Kawasaki FX801V air cooled engine
LRS749AKC604A1: 60" Ultracut Series 4 Fabricated Deck, 26.5hp Kohler ECV749 air cooled fuel injected engine
LRS801GKA60RA1: 60" Rear Discharge Ultracut Series 4 Fabricated Deck, 25.5p Kawasaki FX801 air cooled engine
LRS801GKA724A1: 72" Ultracut Series 4 Fabricated Deck, 25.5hp Kawasaki FX801V air cooled engine
LRS749AKC724A1: 72" Ultracut Series 4 Fabricated Deck, 26.5hp Kohler ECV749EFI air cooled fuel injected engine
LRS801GKA72RA1: 72" Rear Discharge Ultracut Series 4 Fabricated Deck, 25.5hp Kawasaki FX801V air cooled engine

EXMARK LAZER LRS-SERIES DIMENSIONS

LRS-Series Lazer Product Dimensions: 52" Lazer LRS 60" Lazer LRS 72" Lazer LRS
Length: 79.2" 83.1" 86.1"
Width 64.8"  72.8" 84.9"
Weight:  1136 lbs.  1209 lbs. 1250 lbs.
Overall Height: 70.5" 70.5" 70.5"
Warranty 5 years or 1250 hours,
No hour limit the first 2 years
5 years or 1250 hours,
No hour limit the first 2 years
5 years or 1250 hours,
No hour limit the first 2 years


Optional Accessories:


3-bagger commercial-grade powered collection system. Switch between bag discharge and side discharge with quick-attach. Less clogging with larger-diamer tubes. Compact design minimizes trailer space for easy maneuverability. Dust reduction with sealed hoods.

Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).

Keep mowing after the sun goes down with brilliant, LED light kit. Easily mounted to your mower, bright and durable.

Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models.
(Does not fit Quest.)

The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.

Operator Controlled Discharge (Foot)
The infinitely adjustable blocker door opens and closes by using the convenient foot pedal, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools.
