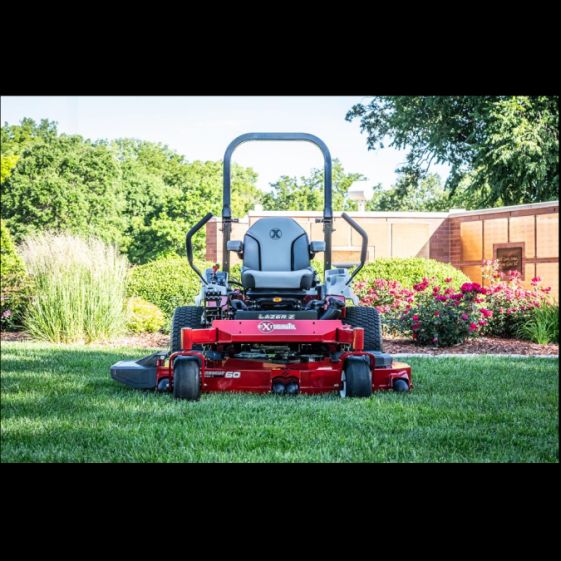

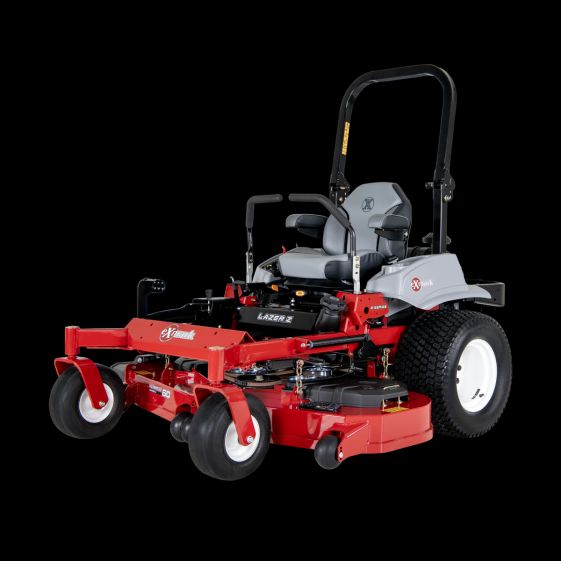

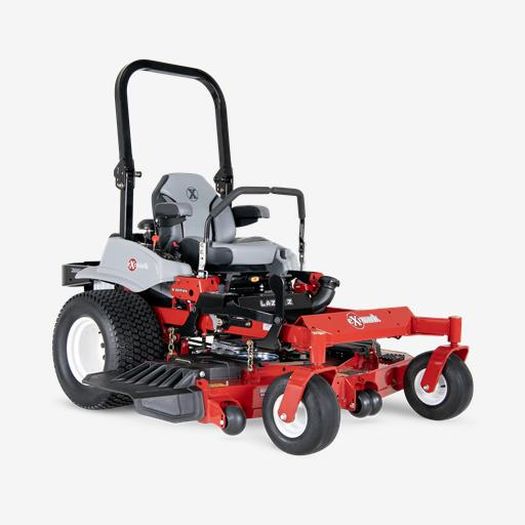

Exmark Lazer LRE-Series Riders

The perfect choice for professional landscape contractors who want the innovative engineering and commercial-grade quality of a Lazer Z zero turn riding mower, but in a
value package. It features the same welded, heavy-duty, 1.5”x 3” tubular steel unibody frame found throughout our Lazer Z models. Powered by rugged & dependable
Kawasaki® FX series V-Twin engines matched to a full-floating, UltraCut™ Series 4 cutting deck, in 48, 52, or 60 inch widths. A digital operator
diagnostic module simplifies system monitoring and troubleshooting, while the fuel gauge uses ultrasonic waves to provide a more accurate reading. Comes equipped with a full-suspension seat that enhances operator comfort.

PRODUCT HIGHLIGHTS

    LRE-Series features:
    • Drive System: Dual Hydro Gear ZT4400 transmissiond with no hoses.
    • Speed: Infinitely variable speed selection 0–11.0 mph forward, 0–6.0 mph reverse.
    • PTO Engagement: MagStop Electromagnetic 175 ft-lb clutch with spot brake
    • Fuel Capacity: 9.5-gallon single fuel tank with single fill location.
    • Drive Wheel Release: Allows unit movement without engine running.
    • Safety Package: Operator Presence Controls (OPC) with safety interlock system indicators.
    • Casters: .50" thick caster yoke arms.
    • Cup Holder: Standard.
    • Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
    • Deck Style:  Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
    • Deck Lift:  Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
    • Cutting Heights:  1.0" to 5.5" in 0.25" increments adjustable from operator’s seat.
    • Blade-Tip Speed:  Approximately 18,500 fpm.
    • Tractor Frame:  Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
    • Steering Control:  Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness, and adjustable to 2 height positions.
    • Front Caster Tires: 13 x 5.0-6, smooth-tread, semi-pneumatic.
    • Drive Tires 48&52" models:  23 x 9.5-12 Super Turf®
    • Drive Tires 60" model:  24 x 12-12 Super Turf®
    • Parking Brake:  Lever-actuated disc brake.
    • Seat:  Deluxe bolstered suspension seat with elastomeric vibration control material. Adjustment: Fore and aft from Operators’ Position.
    • Blade Spindles:  No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98")diameter spindle shaft and splined blade driver.
    • Electrical: 12-volt battery with 15-amp alternator.


    Lazer LRE Features

    Heavy Duty Unibody Frame

    Our one-piece body frame is a classic case of “less is more.” Because, fewer parts equal more strength. And, more durability. So, in the interest of accuracy, the Lazer Z’s unibody frame is actually a case of “less is way more.”
    On-Board Diagnostics

    Check vital functions at a glance on the digital screen. An electronic fuel gauge with low fuel warning on all Lazer Z units, battery voltage warning, hour meter and OPC safety switch monitoring make troubleshooting easy.

    Hydro Drive, Simplified

    Our hydro drive system has no hoses to leak and just one easy-to-change belt. Only simple, annual maintenance is required. It also lowers the center of gravity for improved handling.

    Tool-less Belt Cover Removal

    Deck and hydro belt can be installed without using any tools.

    Ultracut Series 4 Deck

    This full-floating deck uses maintenance free spindle with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.
LAZER LRE-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS
LRE730GKA48DA3: 48" Ultracut Series 4 Fabricated Deck, 23.5hp Kawasaki FX730V air cooled engine
LRE730KA524A3: 52" Ultracut Series 4 Fabricated Deck, 23.5hp Kawasaki FX730V air cooled engine
LRE801GKA524A3: 52" Ultracut Series 4 Fabricated Deck, 25.5hp Kawasaki FX801V air cooled engine
LRE730GKA604A3: 60" Ultracut Series 4 Fabricated Deck, 23.5hp Kawasaki FX730V air cooled engine
LRE801GKA604A3: 60" Ultracut Series 4 Fabricated Deck, 25.5hp Kawasaki FX801V air cooled engine
LRE921GKA604A3: 60" Ultracut Series 4 Fabricated Deck, 31hp Kawasaki FX921V air cooled engine

EXMARK LAZER E-SERIES DIMENSIONS

LRE-Series Lazer Product Dimensions: 48" Lazer 52" Lazer 60" Lazer
Length: 87.8" 84.6" 84.6"
Width 61.2" 64.7"  72.7"
Weight:  1017 lbs 1037 lbs.  1080 lbs.
Overall Height: 70.1" 70.1" 70.1"
Warranty 5 years/1250 hours
No hour restriction the first two years		 5 years/1250 hours
No hour restriction the first two years		 5 years/1250 hours
No hour restriction the first two years

Optional Accessories:

3-bagger commercial-grade powered collection system. Switch between bag discharge and side discharge with quick-attach. Less clogging with larger-diamer tubes. Compact design minimizes trailer space for easy maneuverability. Dust reduction with sealed hoods.
Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Conveniently located within easy reach of the operator, this trash container features a 2.5-gallon capacity and durable, easy-to-clean mesh receptacle. See dealer for fit- up information.

Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models.
(Does not fit Quest.)
The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.
Operator Controlled Discharge (Foot)
The infinitely adjustable blocker door opens and closes by using the convenient foot pedal, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools.
