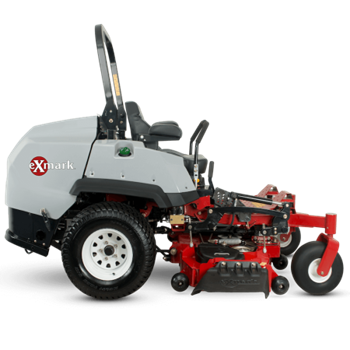

Exmark Lazer Diesel Series Riders

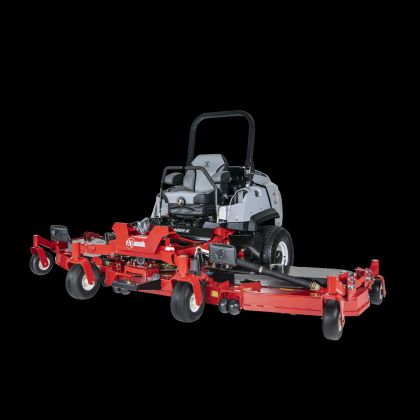

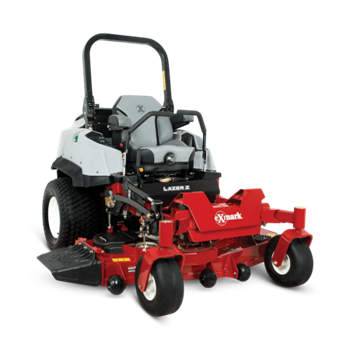

When maximum productivity, durability, and cut quality are your priorities, the new Exmark Lazer Z Diesel zero-turn mowers are the right choice. When equipped with the new industry-leading 144-inch UltraCut™ Flex Wing cutting deck, the Lazer Z Diesel can mow 11.5 acres per hour, making it the most productive mower Exmark has built. Powered by a cutting-edge Yanmar diesel engine, large drive tires allow you to reach ground speeds up to 12.5 MPH with the 96" deck. The Lazer Z Diesel is also available with 60 and 72-inch UltraCut™ cutting decks. Delivering a high-quality cut, the flex wings on the 96-inch and 144-inch decks pivot 20-degrees up and 15-degrees down on sloping terrain.
The Lazer Z Diesel zero-turn mower delivers unparalleled durability and precision maneuverability.

PRODUCT HIGHLIGHTS


              Diesel Series features:
    • Engines:  25hp Yanmar Electronically Governed IDI Turbo Diesel, 37hp Yanmar Common Rail Diesel, 44hp Yanmar Common Rail Diesel w/Fuel Cooler
    • On Board Intelligence:  RED Technology
    • Drive System (60, 72 & 96"): Kanzaki KPS-18T Transmission, 16-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-H motors, hydraulic oil cooler.
    • Drive System (144"): Kanzaki KPS-18T Transmission, 14-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 1.83/1.09 cubic inch 2 speed Danfoss axial piston motors plus Omni planetary gear reduction, hydraulic oil cooler..
    • Drive Speed (60 & 72"): Infinitely variable speed selection from 0-11.0 mph forward, 0-6.0 mph reverse
    • Drive Speed (96"): Infinitely variable speed selection from 0–12.5 mph forward, 0–7 mph reverse
    • Drive Speed (144"): Infinitely variable speed selection from 0 to 10mph forward/0 to 6mph reverse in low range, 0 to 17mph forward/0 to 10mph reverse
    • PTO Engagement:  Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft.
    • Fuel Capacity: 12-gallon side fuel tanks.
    • Drive Wheel Release: Allows unit movement without engine running.
    • Safety Package: Operator Presence Controls (OPC) and drive system interlock.
    • Casters: .50" thick caster yoke arms.
    • Cup Holder: Standard.
    • Deck Construction (60 & 72"): 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt & 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.
    • Deck Construction (96 & 144"): 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
    • Deck Style (60 & 72"):  Full-floating Series 4 High-Capacity Cutting Platform. Side-discharge standard with option to bag or mulch.
    • Deck Style (96 & 144"):  Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with finish cut baffles included.
    • Blade Spindles:  No maintenance, sealed and non-greasable spindles; 7.75"-diamter cutter housing with 1.75" diameter splined blade driver and 1.18" diameter spindle shaft.
    • Deck Lift:  Hydraulic
    • Cutting Heights:  1.5" to 5.5" in 0.25" increments adjustable from operator’s seat.
    • Blade-Tip Speed:  Approximately 17,600 fpm.
    • Tractor Frame:  Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.
    • Steering Control:  Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
    • Front Caster Tires: 15 x 6.0-6, smooth-tread, semi-pneumatic.
    • Drive Tires models:  (60") 26 x 12-12, (72") 27 x 12 x 12, (96") 30 x 12 x 12 & (144") 29 x 12 x 12 6ply Multi Trac®
    • Parking Brake:  Lever-actuated internal wet disc brake.
    • Seat:  Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
    • Electrical:   12-volt battery with 55-amp alternator on 60, 72 & 96" & 12 volt battery with 175 amp alternator on the 144"
    Improved Handling

    The engine and radiator have been placed lower to the ground in the redesigned Lazer Z Diesel. This provides an even lower center of gravity leading to improved traction and a smoother ride.

    RED Technology

    The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes.


    Reduced Maintenance and Service

    With an efficient and robust powertrain system, in addition to eliminating drive belts, these machines have less maintenance and longer service intervals. And the tool-less belt access and removable floor pan makes servicing easy.


    		 Hydraulic Deck Lift

    Standard on all diesel units, the hydraulic deck lift provides for easy cutting height adjustment and quick transport.

    Fuel Capacity

    For longer work intervals, the Lazer Z Diesel has a 12.0-gallon capacity with two tanks. This will keep you mowing longer with fewer fill-ups.



    What is Red Technology?  Watch this video and see all about it!


LAZER DIESEL-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS
LZS80TDYM604W0: 60" Full Floating Series 4 Fabricated Deck, 25hp Yanmar Electronically Governed IDI TurboDiesel engine
LZS80TDYM724W0: 72" Full Floating Series 4 Fabricated Deck, 25hp Yanmar Electronically Governed IDI Turbo Diesel engine
LZS80TDYM724RW0: 72" Full Floating Series 4 Rear Discharge Fabricated Deck, 25hp Yanmar Electronically Governed IDI Turbo Diesel engine

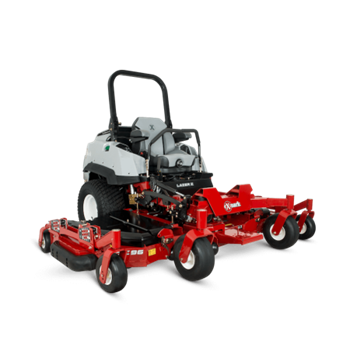

LZS88CDYM96RW0: 96" Cut using 48" Center Deck, and 2 Wing Decks - Ultra Series 4 Rear Discharge Fabricated Decks, 37hp Yanmar Common Rail Diesel engine
LZS86TDYM12RW0: 144" Cut using 48" Center & Wing Decks - Ultra Cut Series 4 Rear Discharge Fabricated Decks, 44hp Yanmar Common Rail Diesel engine w/fuel cooler

EXMARK LAZER DIESEL-SERIES DIMENSIONS

Diesel Lazer Product Dimensions: 60" Side Discharge Lazer Diesel 72" Side Discharge Lazer Diesel 96" Lazer Diesel 144" Lazer Diesel
Length: 96.43" 99.6" 97.2" 101.3"

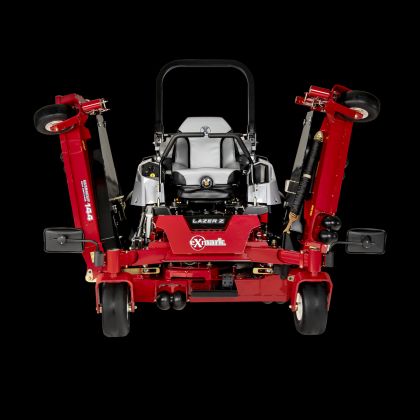

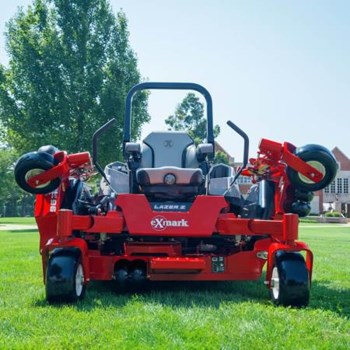

Width: 72.8"  84.9" 101.2" or 72.5" when folded 144.9" or 84" when folded
Weight:  1915 lbs.  1930 lbs. 2650lbs. 3250lbs.
Overall Height: 71.8" 71.8" 71.8" 72.6"
Acres Per Hour 5.32 6.39 9.68 11.61
Warranty 5 year 1500 hours with no hour restriction the first 2 years 5 year 1500 hours with no hour restriction the first 2 years 5 year 1500 hours with no hour restriction the first 2 years 5 year 1500 hours with no hour restriction the first 2 years


Optional Accessories:




Jack - Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).




Turf Striping Kit - Fits 72" models. Customize your property with consistent and professional striping using a smooth operating roller design. Installs quickly, using existing mounting points, and easily adjusts for varying cutting height settings. Does not affect your ability to get up and over curbs.
Keep mowing after the sun goes down with brilliant, 27-watt halogen power from this Hella® Work Lamp Kit. Easily mounted to your ROPS bar, the highly durable lenses repel dust, withstand impact, and can even take on high- pressure cleaning. With twice the illumination output of a conventional work lamp, the kit also features a pivot base and easy bulb replacement.

Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)

The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.
Operator Controlled Discharge (Foot)
The infinitely adjustable blocker door opens and closes by using the convenient foot pedal, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools.
