Exmark Vertex E, S & X Series Stand-On Mowers

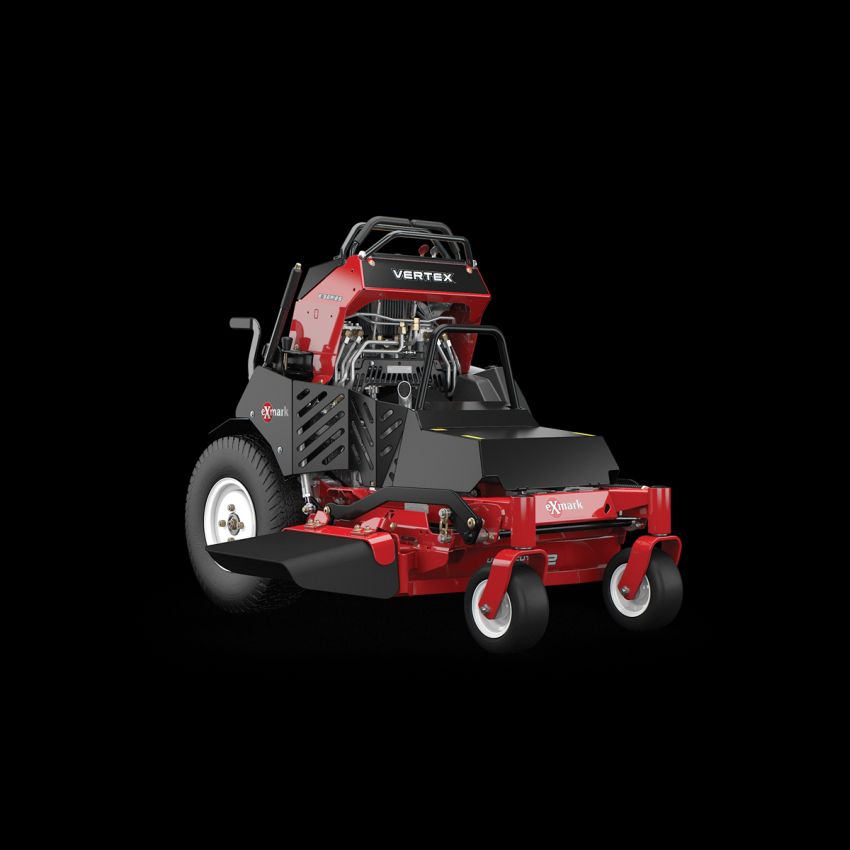

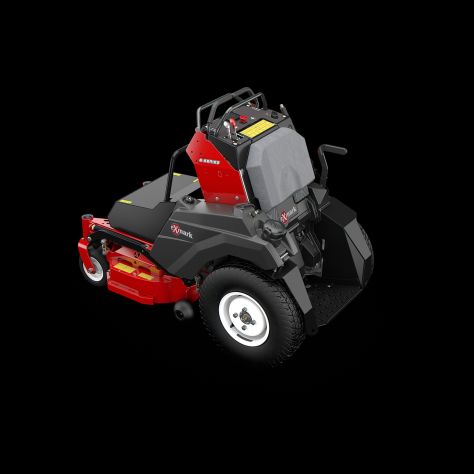

E-SERIES VERTEX

E-SERIES PRODUCT HIGHLIGHTS:

32"& 36" Sizes available

Powerful Kawasaki FS series engines

Up to 7.5mph forward ground speed, and 4mph in reverse

Zero-Maintenance spindles made from rugged cast aluminum with sealed bearings.

Easy open top deck cover and rear pad for easy maintenance.

Full-floating UltraCut Series 3 Side discharge mower deck, with flexible discharge chute

1" to 4.5" height of cut, in 1/4" increments - adjustable with pins on each deck side

Low operator stance for added stability

5 Gallon fuel tank capacity

10 cc Hydro pumps and 12cubic inch Parker wheel motors

E-Series Features:

Air Filter: Standard Engine Manufacturer's air filter
Drive System: Two Hydro Gear 10 cc pumps powering two Parker 12 cubic inch motors.
Speed: Infinitely variable speed selection 0–7.5 mph forward, 0–4.0 mph reverse
PTO Engagement: Warner 105 ft-lb clutch
Fuel Capacity: 5-gallon (18.9-L), single fuel tank with single fill location.
Drive Wheel Release: Allows unit movement without engine running.
Safety Package: Operator Presence Controls (OPC) with safety interlock system indicators.
Casters: .38 thick caster yoke arms with sealed ball bearings
Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt
Deck Style: Full-floating UltraCut Series 3. Side discharge standard, with flexible discharge chute and option to bag or mulch.
Deck Lift: Manual lift with hairpin from hole to hole for position adjustment.
Cutting Heights: 1.0" to 4.5" height adjustments, in 1/4" increments
Blade-Tip Speed: Approximately 18,500 fpm.
Tractor Frame: Welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control: Twin levers with adjustable front reference bar to modify forward ground speed.
Front Caster Tires: 9 x 4.50-5, smooth-tread, semipneumatic tires with sealed ball bearings.
Drive Tires: 21x 7-10 Kenda
Parking Brake: Lever-actuated bar brake.
Blade Spindles: No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.
Electrical: 12-volt battery with 15-amp alternator.
Acres Per Hour: 32" Vertex E mows 1.94 acres per hour, 36" Vertex E mows 2.18 acres per hour

EXMARK STARIS E-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS

VXE600GKA32300: 32" Ultracut Series 3 Deck, 18.5hp Kawasaki FS600V air-cooled engine

VXE600CKA36300: 36" Ultracut Series 3 Deck, 18.5hp Kawasaki FS600V air-cooled engine

EXMARK VERTEX E-SERIES DIMENSIONS

E-Series Vertex Product Dimensions:	32" Vertex	36" Vertex
Length:	58.1"	58.1"
Height:	47.3"	47.3"
Weight:	702 lbs	779 lbs.
Warranty	4 years or 750 hours commercial No hour limit the first 2 years	4 years or 750 hours commercial No hour limit the first 2 years

<br>

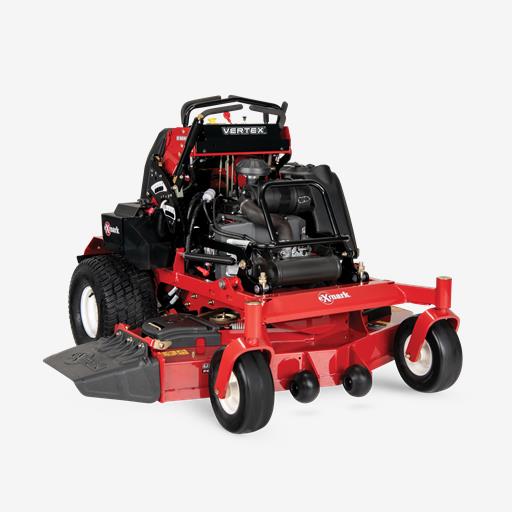

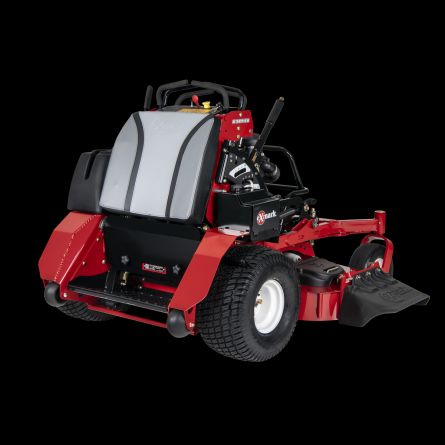

S-SERIES VERTEX

S-SERIES PRODUCT HIGHLIGHTS:

48", 52", 60" Sizes available

Powerful Kawasaki FX or Kohler fuel injected engines

Up to 10mph forward ground speed, and 4mph in reverse

Zero-Maintenance spindles made from rugged cast aluminum with sealed bearings

Easy open top deck cover and rear pad for easy maintenance

Large foldable operator platform with suspension for operator comfort

1.5" to 5.0" height of cut, in 1/4" increments - adjustable from operator’s platform

Low operator stance for added stability

8 Gallon single tank on left side

12 cc Hydro pumps and 14.5 cubic inch Parker wheel motors

The compact size allows more units to fit on a single trailer.

S-Series features:

Drive System: Two Hydro Gear 12 cc pumps powering two Parker 14.5 cubic inch motors.
Speed: Infinitely variable speed selection 0–8.5 mph forward, 0–4.0 mph reverse
PTO Engagement: Warner 175 ft-lb clutch.
Fuel Capacity: 8-gallon single fuel tank on left hand side.
Drive Wheel Release: Allows unit movement without engine running.
Safety Package: Operator Presence Controls (OPC) with safety interlock system indicators.
Casters: .50 thick caster yoke arms with tapered roller bearings
Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.

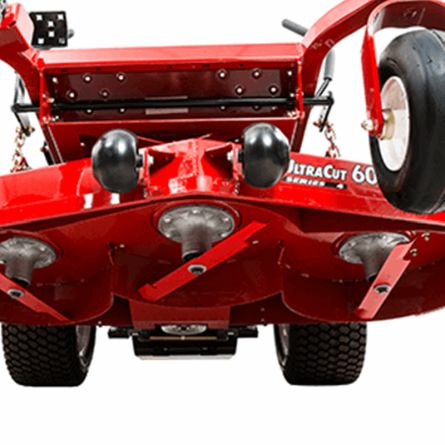

Deck Style: Full-floating UltraCut Series 4 on 48, 52, or 60 inch decks. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Lift: Single point height of cut, with lift-assist springs.
Cutting Heights: 1.5" to 5.0" height of cut, adjustable in 1/4" increments - adjustable from the operator position.
Blade-Tip Speed: Approximately 18,500 fpm.
Tractor Frame: Welded, heavy-duty 1.5" x 2.5" tubular steel.
Steering Control: Twin levers with no-tools adjustable front reference bar to modify forward ground speed.
Front Caster Tires: 13 x 5.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.
Parking Brake: Lever-actuated bar brake.
Blade Spindles: No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft..
Electrical: 12-volt battery with 15-amp alternator.
Acres Per Hour: 48" Vertex S mows 3.29 acres per hour, 52" Vertex S mows 3.56 acres per hour and the 60" Vertex S mows 4.11 acres per hour.

EXMARK VERTEX S-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS

VXS730GKA48400: 48" Ultracut Series 4 Deck, 23.5hp Kawasaki FX730V air-cooled engine

VXS740EKC48400: 48" Ultracut Series 4 Deck, 25hp Kohler EFI air-cooled engine

VXS730GKA52400: 52" Ultracut Series 4 Deck, 23.5hp Kawasaki FX730V air-cooled engine

VXS740EKC52400: 52" Ultracut Series 4 Deck, 25hp Kohler EFI air-cooled engine

VXS730GKA60400: 60" Ultracut Series 4 Deck, 23.5hp Kawasaki FX730V air-cooled engine

VXS740EKC60400: 60" Ultracut Series 4 Deck, 25hp Kohler EFI air-cooled engine

EXMARK VERTEX S-SERIES DIMENSIONS

S-Series Vertex Product Dimensions:	48" Vertex	52" Vertex	60" Vertex
Length:	65.33"	65.33"	68.24"
Width	60.5"	64.8"	72.8"
Weight:	925 lbs	936 lbs.	978 lbs.
Overall Height:	49.2"	49.2"	49.2"
Warranty	4 years or 1250 hours commercial No hour limit the first 2 years	4 years or 1250 hours commercial No hour limit the first 2 years	4 years or 1250 hours commercial No hour limit the first 2 years

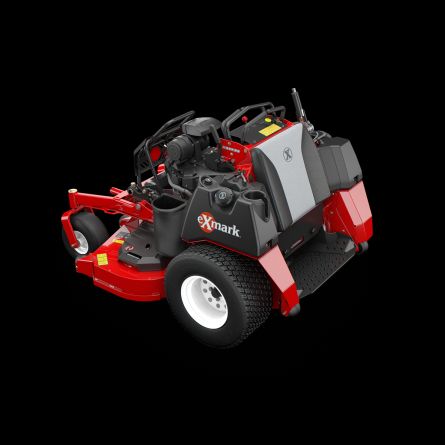

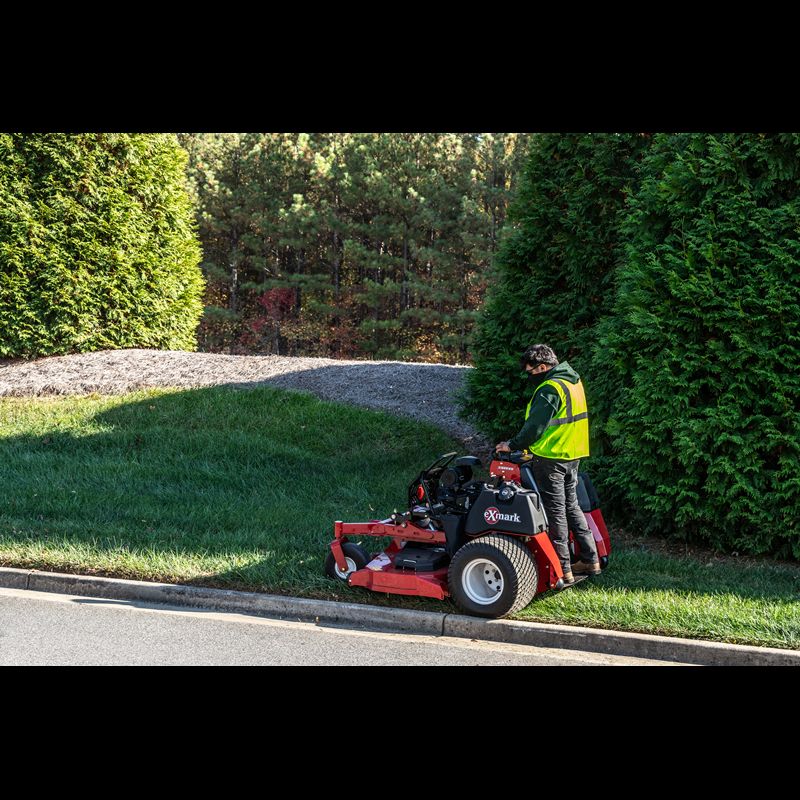

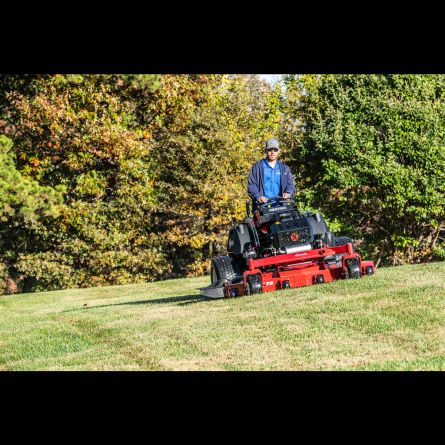

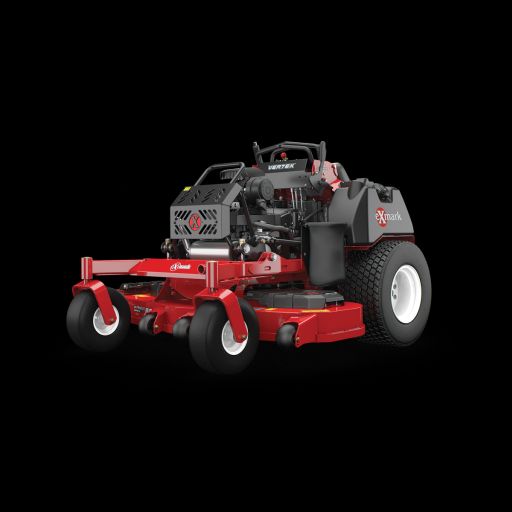

X-SERIES VERTEX

X-SERIES PRODUCT HIGHLIGHTS:

52", 60"& 72" Sizes available

Powerful Kawasaki FX Carburated or fuel injected engines

Up to 12mph forward ground speed, and 4mph in reverse

Zero-Maintenance spindles made from rugged cast aluminum with sealed bearings

Easy open top deck cover and rear pad for easy maintenance

Large foldable operator platform with suspension for operator comfort

1.5" to 5.0" height of cut, in 1/4" increments - adjustable from operator’s platform

Steel hydraulic lines for added strength, and routing abilitiy

Low operator stance for added stability

14 Gallon combined capacity in dual fuel tanks

16 cc Hydro pumps and 17.8 cubic inch Parker wheel motors

Super productive mowing machine, don't let it's compact size fool you.

X-Series features:

Drive System: Two Hydro Gear 16 cc pumps powering two Parker 17.8 cubic inch motors.
Speed: Infinitely variable speed selection 0–12 mph forward, 0–5.0 mph reverse
PTO Engagement: Warner 250 ft-lb clutch.
Fuel Capacity: 14-gallon total capacity in dual fuel tanks.
Drive Wheel Release: Allows unit movement without engine running.
Safety Package: Operator Presence Controls (OPC) with safety interlock system indicators.
Casters: .50 thick caster yoke arms with tapered roller bearings
Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Deck Style: Full-floating UltraCut Series 6 on 52, 60 or 72 inch decks. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Lift: Single point height of cut, with lift-assist springs.
Cutting Heights: 1.5" to 5.0" height of cut, adjustable in 1/4" increments - adjustable from the operator position.
Blade-Tip Speed: Approximately 18,500 fpm.
Tractor Frame: Welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control: Twin levers with no-tools adjustable front reference bar to modify forward ground speed.
Front Caster Tires: 15 x 6.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.
Parking Brake: Lever-actuated bar brake.
Blade Spindles: No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft..
Electrical: 12-volt battery with 30-amp alternator.
Acres Per Hour: 52" Vertex X mows 5.03 acres per hour, 60" Vertex X mows 5.81 acres per hour and the 72" Vertex X mows 6.97 acres per hour.

EXMARK VERTEX X-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS

VXX999GKA52600: 52" Ultracut Series 6 Deck, 35hp Kawasaki FX1000V air-cooled engine

VXX999EKA52600: 52" Ultracut Series 6 Deck, 38.5hp Kawasaki EFI air-cooled engine

VXX999GKA60600: 60" Ultracut Series 6 Deck, 35hp Kawasaki FX1000V air-cooled engine

VXX999EKA60600: 60" Ultracut Series 6 Deck, 38.5hp Kawasaki EFI air-cooled engine

VXX999GKA72600: 72" Ultracut Series 6 Deck, 35hp Kawasaki FX1000V air-cooled engine

VXX999EKA72600: 72" Ultracut Series 6 Deck, 38.5hp Kawasaki EFI air-cooled engine

EXMARK VERTEX X-SERIES DIMENSIONS

X-Series Vertex Product Dimensions:	52" Vertex X	60" Vertex X	72" Vertex X
Length:	70.45"	73.36"	77.11"
Width	64.79"	72.87"	84.83"
Weight:	1250 lbs	1310 lbs.	1400 lbs.
Overall Height:	48.75"	48.75"	48.75"
Warranty	5 years or 1500 hours commercial No hour limit the first 2 years	5 years or 1500 hours commercial No hour limit the first 2 years	5 years or 1500 hours commercial No hour limit the first 2 years

VERTEX MOWER ACCESSORIES

Lightweight and easy to attach, this 3-bushel grass catcher fits all Exmark Lazer Z, Pioneer, Radius, Vantage* and wide-area walk-behinds. (*Not available for Vantage Propane models.) 116-7042 spacer adapter required for 36" deck models.

The infinitely adjustable blocker door opens and closes, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools.

The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping
